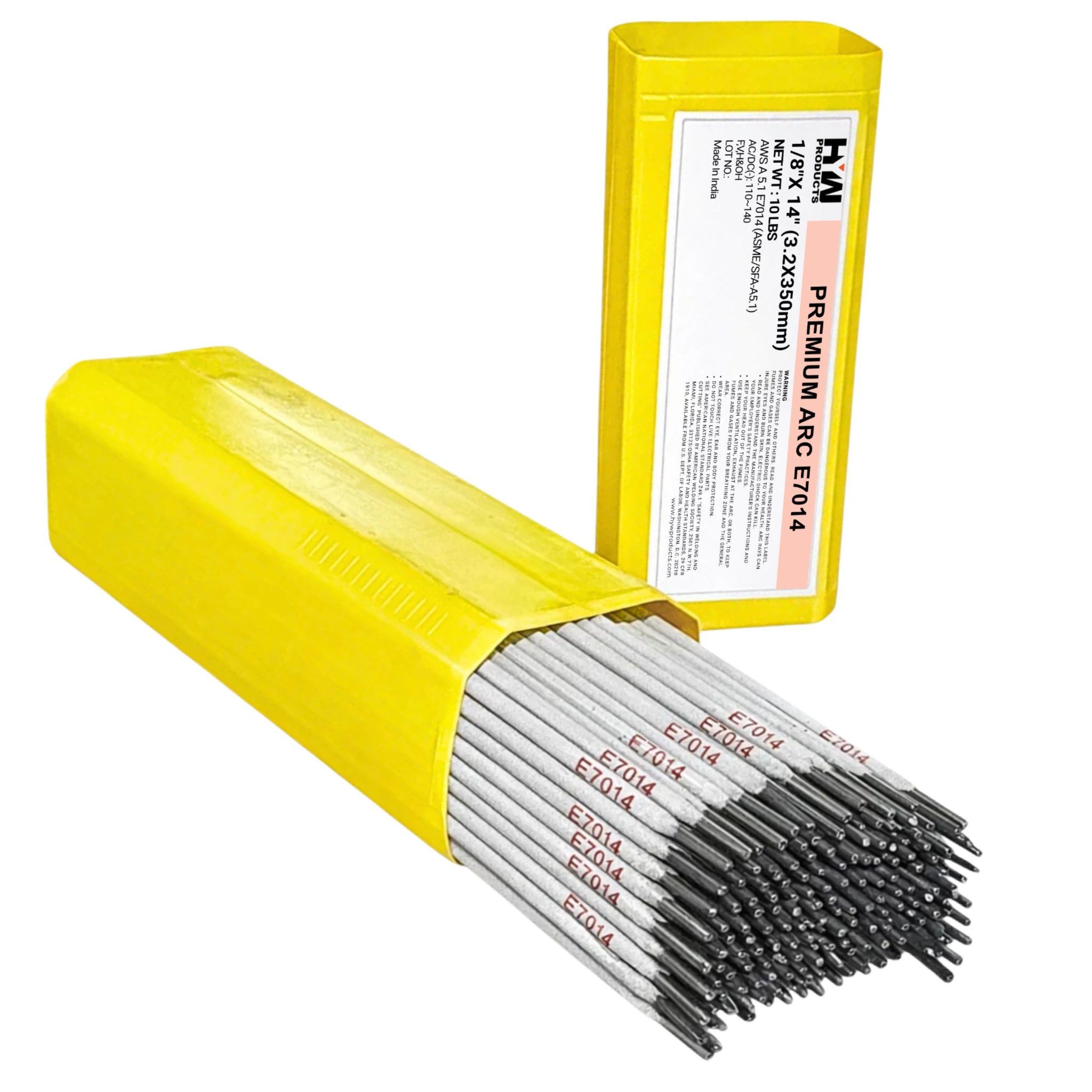

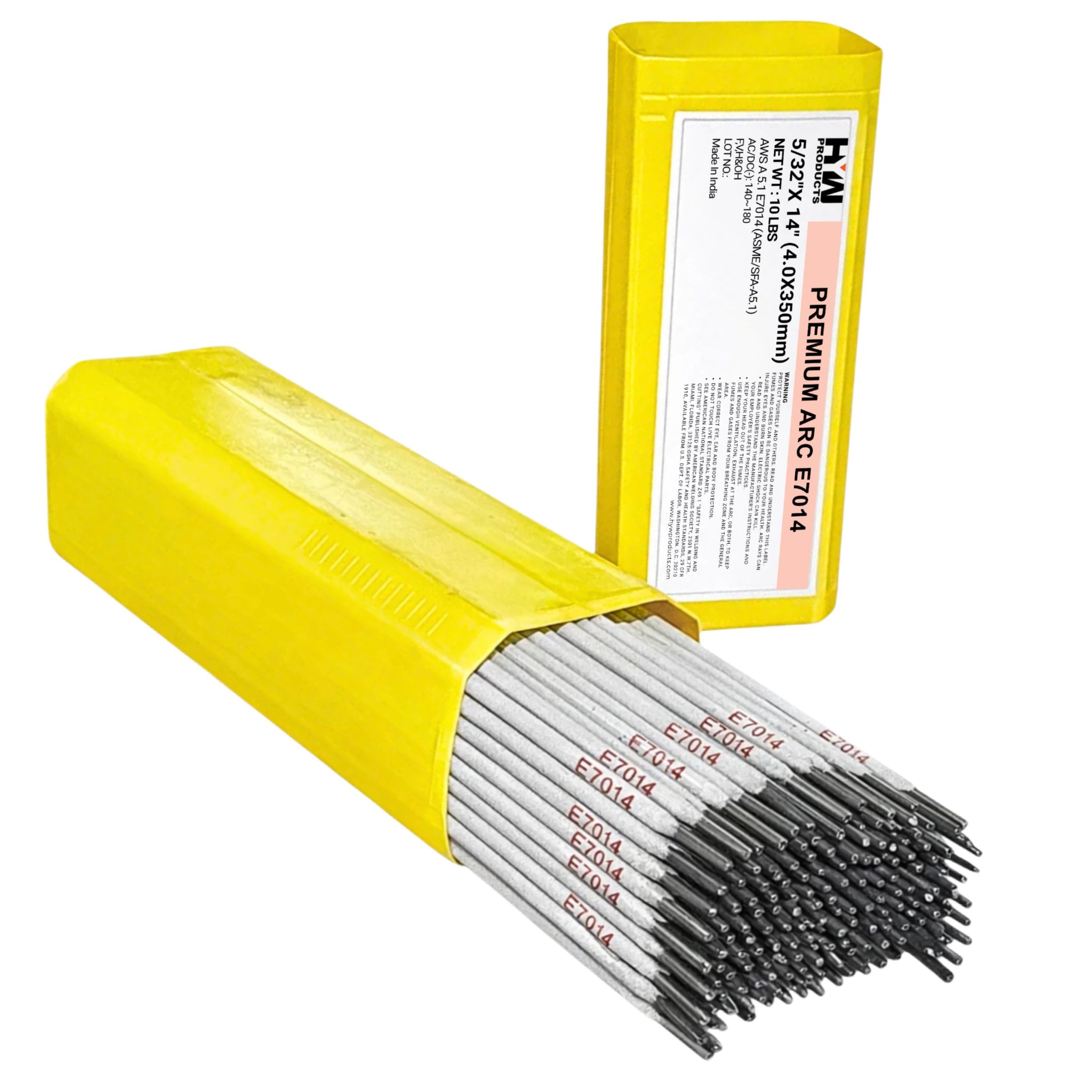

HYW E7014 Stick Electrodes combine the easy handling of a rutile rod with the higher deposition of an iron-powder coating, supplied in a convenient 10 lb box. The result is a smooth, fast arc that runs on AC or DC, fills gaps and poor fit-up with ease, and lays down clean 70,000 psi welds in all positions — well suited to high-production single- and multi-pass fabrication.
Key Features
-
› Iron-powder titania coating for high deposition and fast travel
-
› Smooth, easy arc that tolerates poor joint fit-up
-
› 70,000 psi tensile strength
-
› Runs on AC or DC± for versatile setup
-
› All-position single- and multi-pass welding
-
› Easy slag removal with clean bead appearance
Ideal Applications
-
› General and structural fabrication
-
› Production and repetitive fillet/lap welds
-
› Maintenance and repair
-
› Light-to-medium plate assemblies
Technical Specifications
| AWS Classification |
AWS A5.1 / ASME SFA-5.1 E7014 |
| Tensile Strength |
70,000 psi (483 MPa) minimum |
| Coating Type |
Iron Powder, Titania |
| Welding Current |
AC or DC± (DCEP / DCEN) |
| Welding Positions |
All positions — Flat, Horizontal, Vertical, Overhead |
| Package |
10 lb box |
Available Sizes & Recommended Amperage
| Diameter × Length |
Recommended Amperage |
| 3/32" × 14" |
80 – 125 A |
| 1/8" × 14" |
110 – 160 A |
| 5/32" × 14" |
150 – 210 A |
Recommended amperage ranges are general guidelines; optimal settings vary with base-metal thickness, joint design, and welding position. Store electrodes in a dry location to preserve performance.
