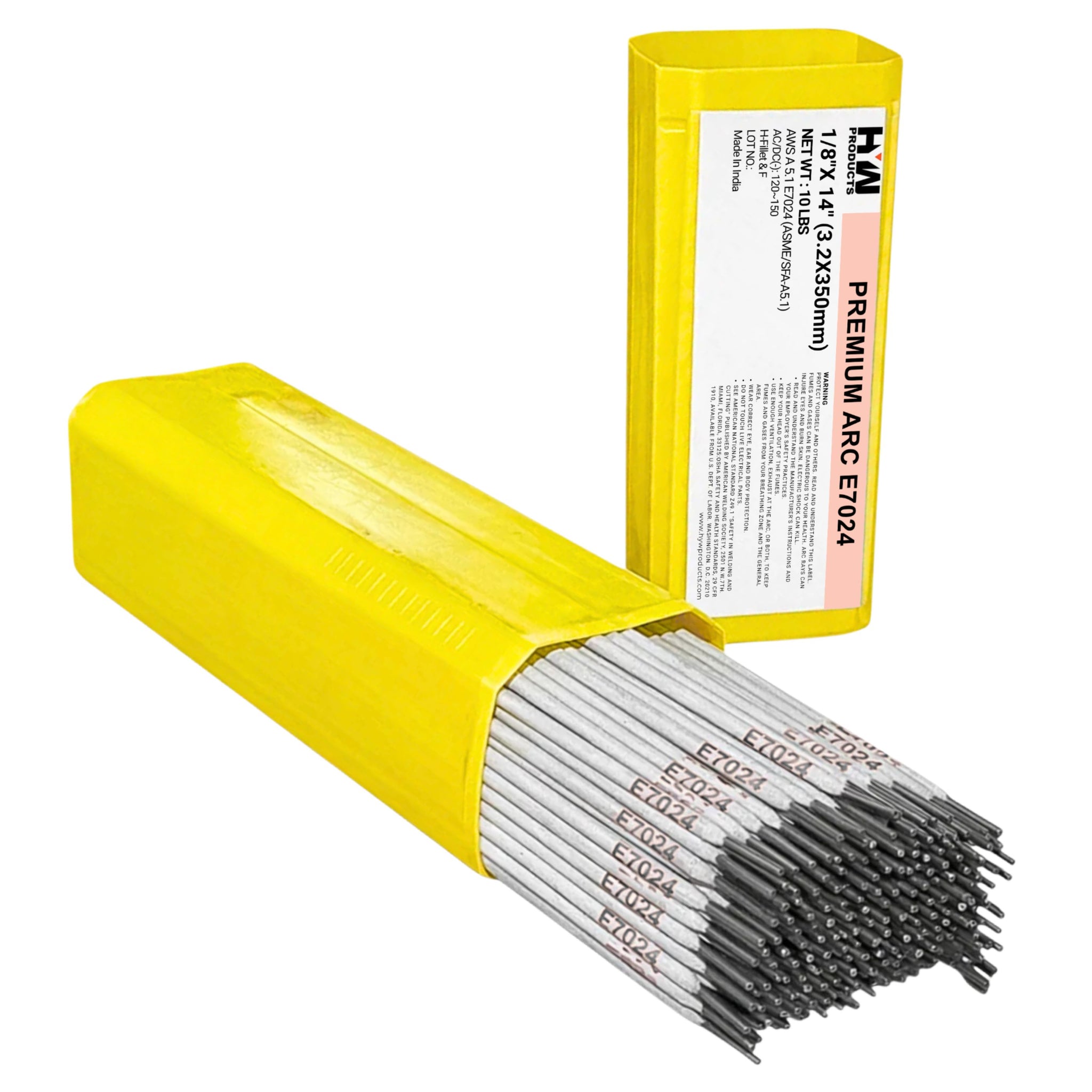

HYW E7024 Stick Electrodes are a high-deposition, iron-powder “drag” rod built for fast, high-production welding in the flat and horizontal-fillet positions, supplied in a convenient 10 lb box. The heavy iron-powder coating lets the electrode be dragged along the joint for smooth, high-speed beads with deep, uniform fill and easy self-peeling slag — ideal for heavy plate and repetitive fillet work.
Key Features
-
› Heavy iron-powder coating for very high deposition rates
-
› Smooth “drag” technique for fast, high-production welding
-
› 70,000 psi tensile strength
-
› Runs on AC or DC± with a soft, quiet arc
-
› Excellent bead appearance with self-peeling slag
Ideal Applications
-
› Heavy plate and structural fillet welds
-
› High-production and repetitive fabrication
-
› Flat-position groove and lap joints
-
› Shipbuilding, machinery, and steel fabrication
Technical Specifications
| AWS Classification |
AWS A5.1 / ASME SFA-5.1 E7024 |
| Tensile Strength |
70,000 psi (483 MPa) minimum |
| Coating Type |
Iron Powder, Titania (high deposition) |
| Welding Current |
AC or DC± (DCEP / DCEN) |
| Welding Positions |
Flat and horizontal fillet only |
| Package |
10 lb box |

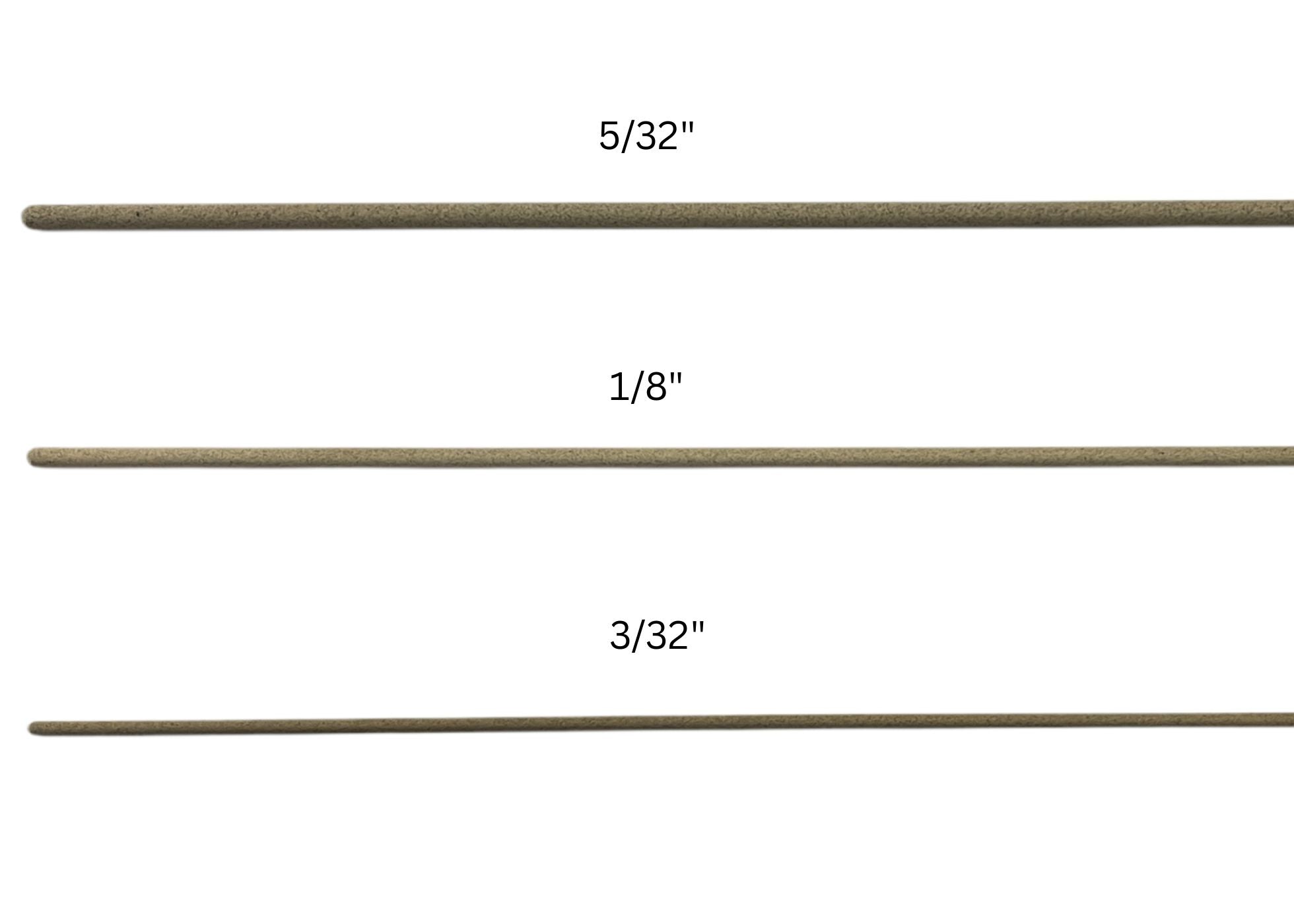

Available Sizes & Recommended Amperage
| Diameter × Length |
Recommended Amperage |
| 3/32" × 14" |
100 – 145 A |
| 1/8" × 14" |
140 – 200 A |
| 5/32" × 14" |
180 – 250 A |
Recommended amperage ranges are general guidelines; optimal settings vary with base-metal thickness, joint design, and welding position. Store electrodes in a dry location to preserve performance.
