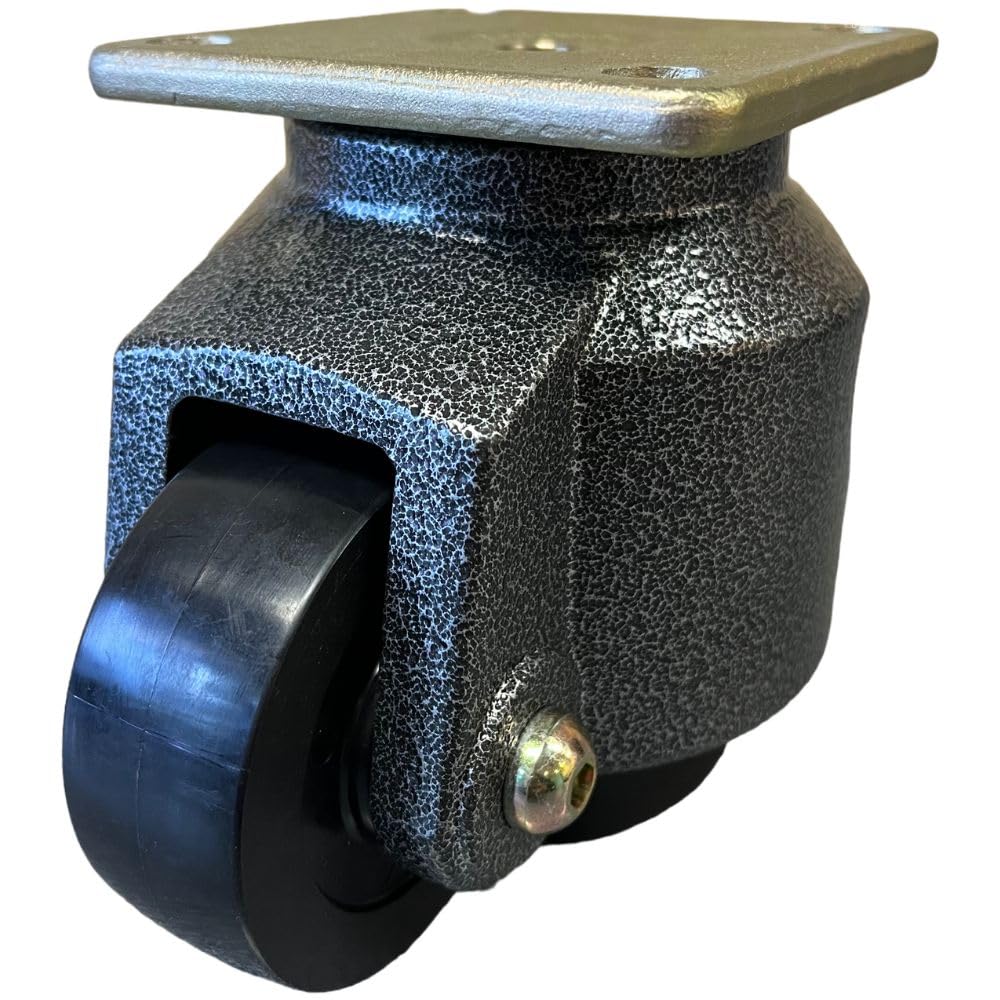

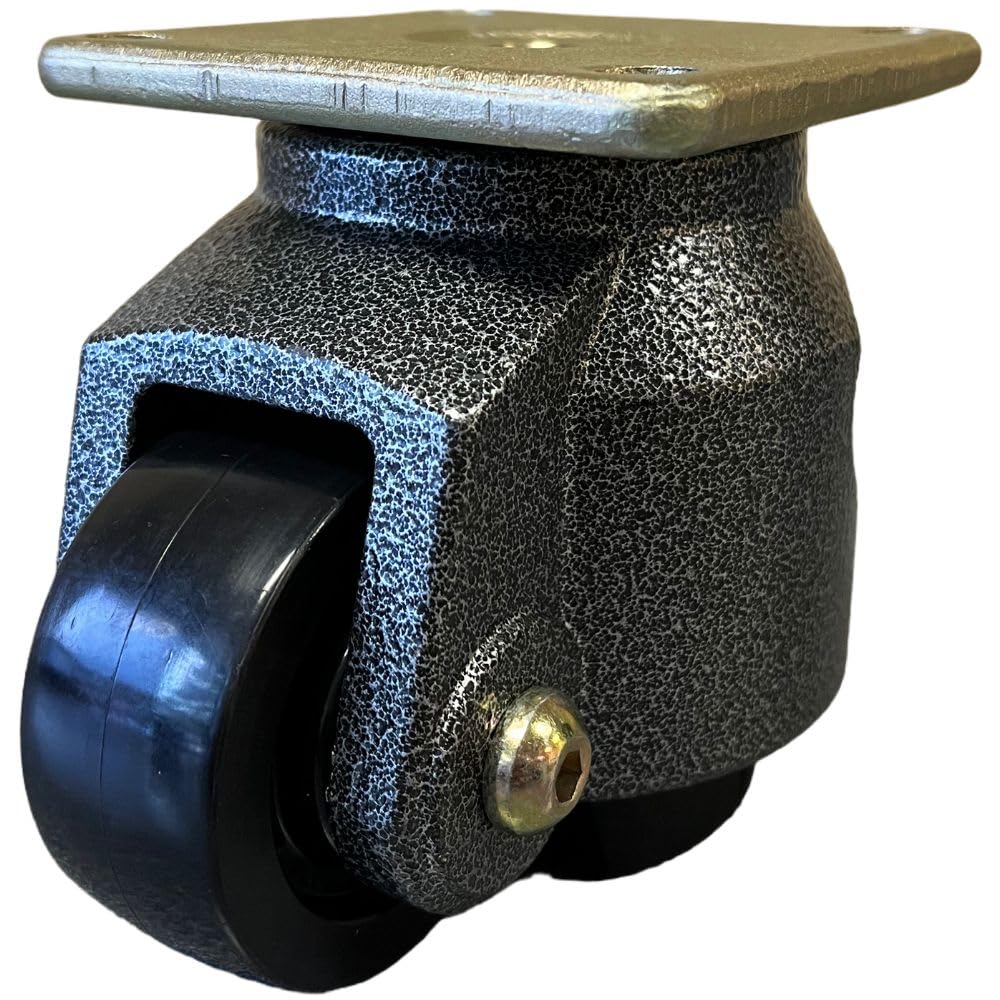

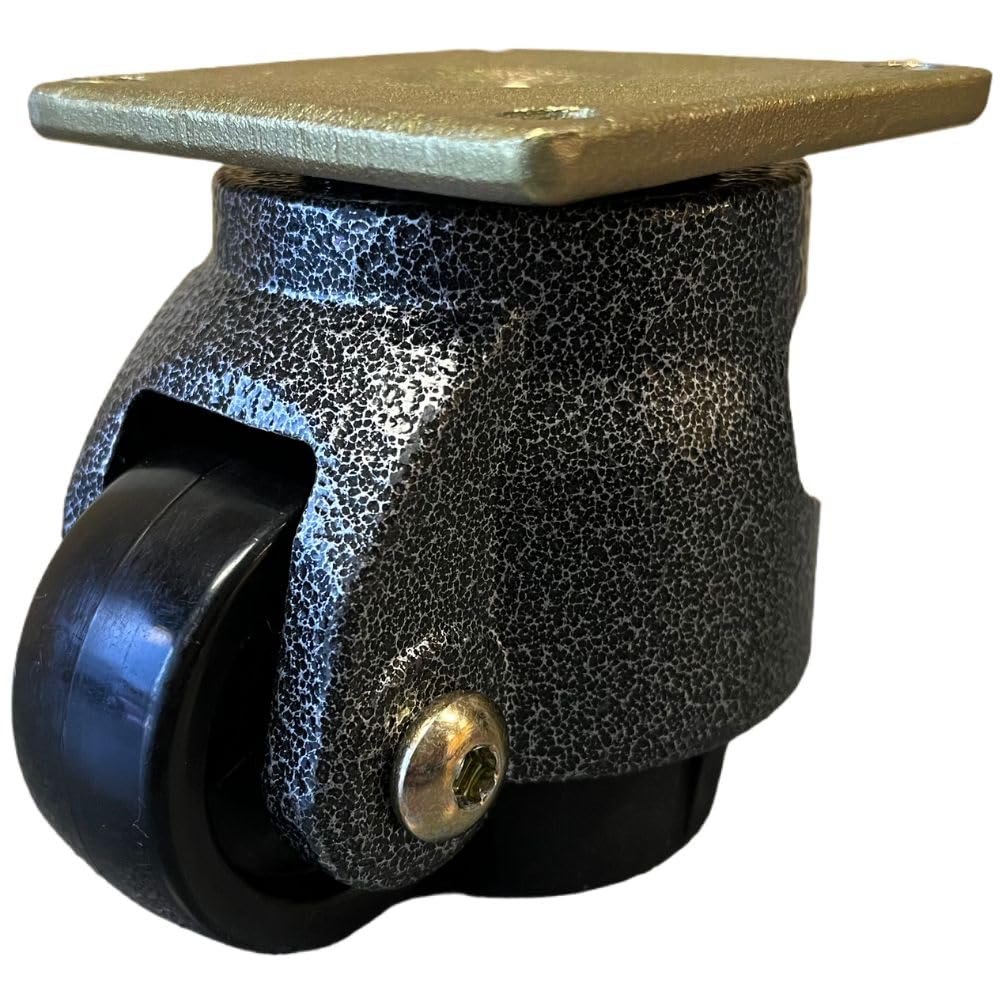

The HYW F-Type Leveling Caster (Series 80) combines mobility and a fixed, leveled footing in one low-profile unit. Roll equipment into position on the Nylon-6 wheel, then turn the pad down to lift the caster off the floor, level the load and lock it in place. Choose your wheel size (60mm, 80mm or 100mm) and pack quantity below.
Key Features
- Steel-inserted frame in die-cast aluminum alloy for rigidity under load
- Nylon-6 wheel for high strength, low rolling resistance and durability
- NBR rubber leveling pad adds grip, anti-corrosion protection and load stability
- Drop-forged S45C steel top plate for long service life
- Square mounting plate with bolt & nut included
- Roll-and-lock design: roll equipment into place, then lower the pad to level and lock
Applications
- machine & workbench leveling
- test and measurement equipment
- medical and optical devices
- clean-room and lab equipment
- computer and server racks
- vibration-sensitive machinery
Size & Load Rating
| Wheel Size |
Model |
Load (per caster) |
| 60mm |
KC60F |
550 lb |
| 80mm |
KC80F |
1,320 lb |
| 100mm |
KC100F |
2,200 lb |
Mount: Square Top Plate (bolt & nut included) · Wheel: Nylon-6 · Pad: NBR rubber · Bearing: Plain
Configurations & Pricing
| Size |
Pack |
SKU |
Price |
Ship weight |
| 60mm |
Single |
KC60F-1 |
$22.37 |
1.65 lb |
| 60mm |
2 Pack |
KC60F-2 |
$34.86 |
3.3 lb |
| 60mm |
4 Pack |
KC60F-4 |
$54.26 |
6.6 lb |
| 80mm |
Single |
KC80F-1 |
$24.35 |
5.0 lb |
| 80mm |
2 Pack |
KC80F-2 |
$42.76 |
10.0 lb |
| 80mm |
4 Pack |
KC80F-4 |
$68.35 |
20.0 lb |
| 100mm |
Single |
KC100F-1 |
$29.69 |
4.0 lb |
| 100mm |
2 Pack |
KC100F-2 |
$54.78 |
8.0 lb |
| 100mm |
4 Pack |
KC100F-4 |
$92.39 |
16.0 lb |
Store indoors and keep the threaded pad clean for smooth height adjustment. Tighten the top-plate hardware to the equipment frame before loading.
