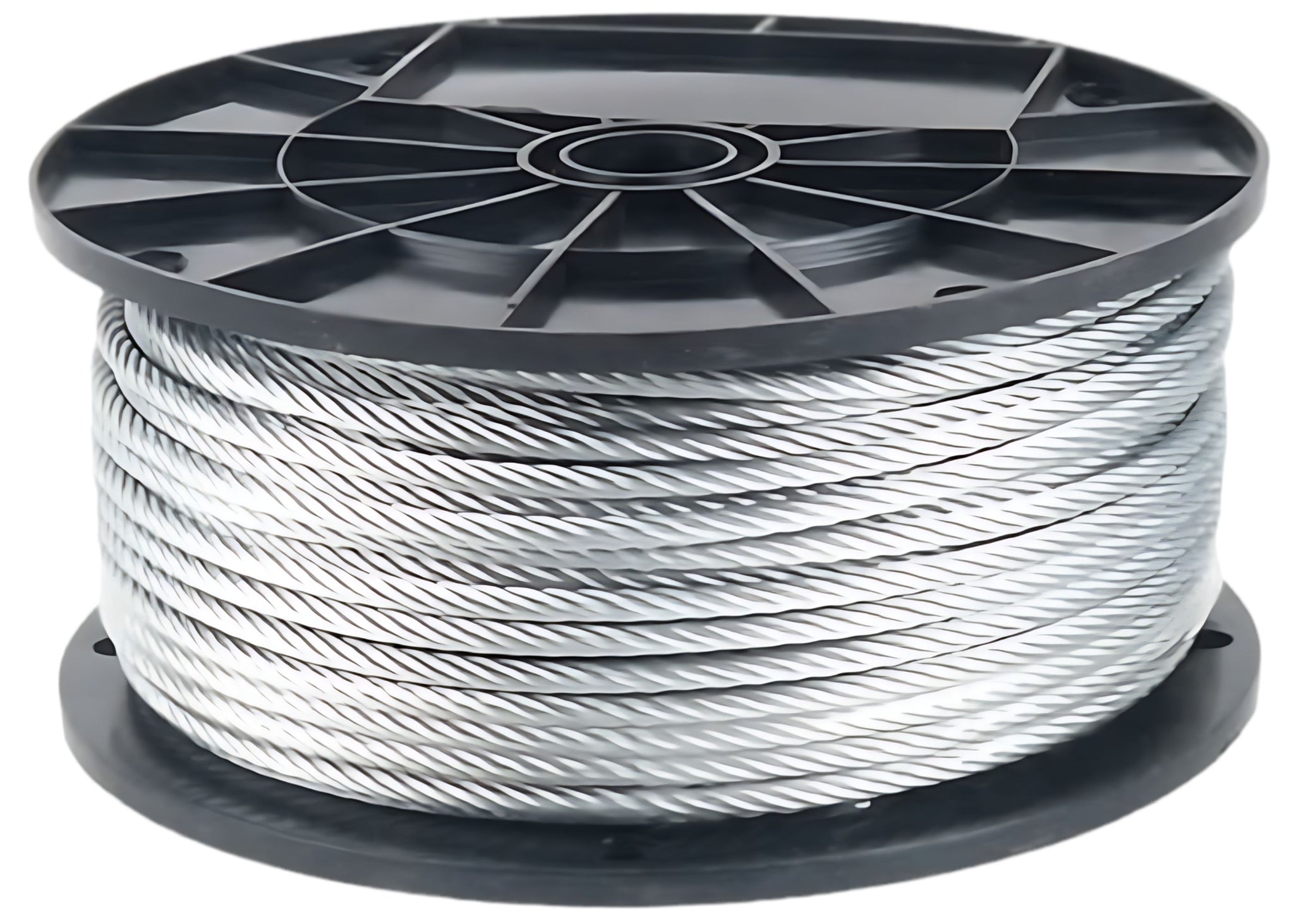

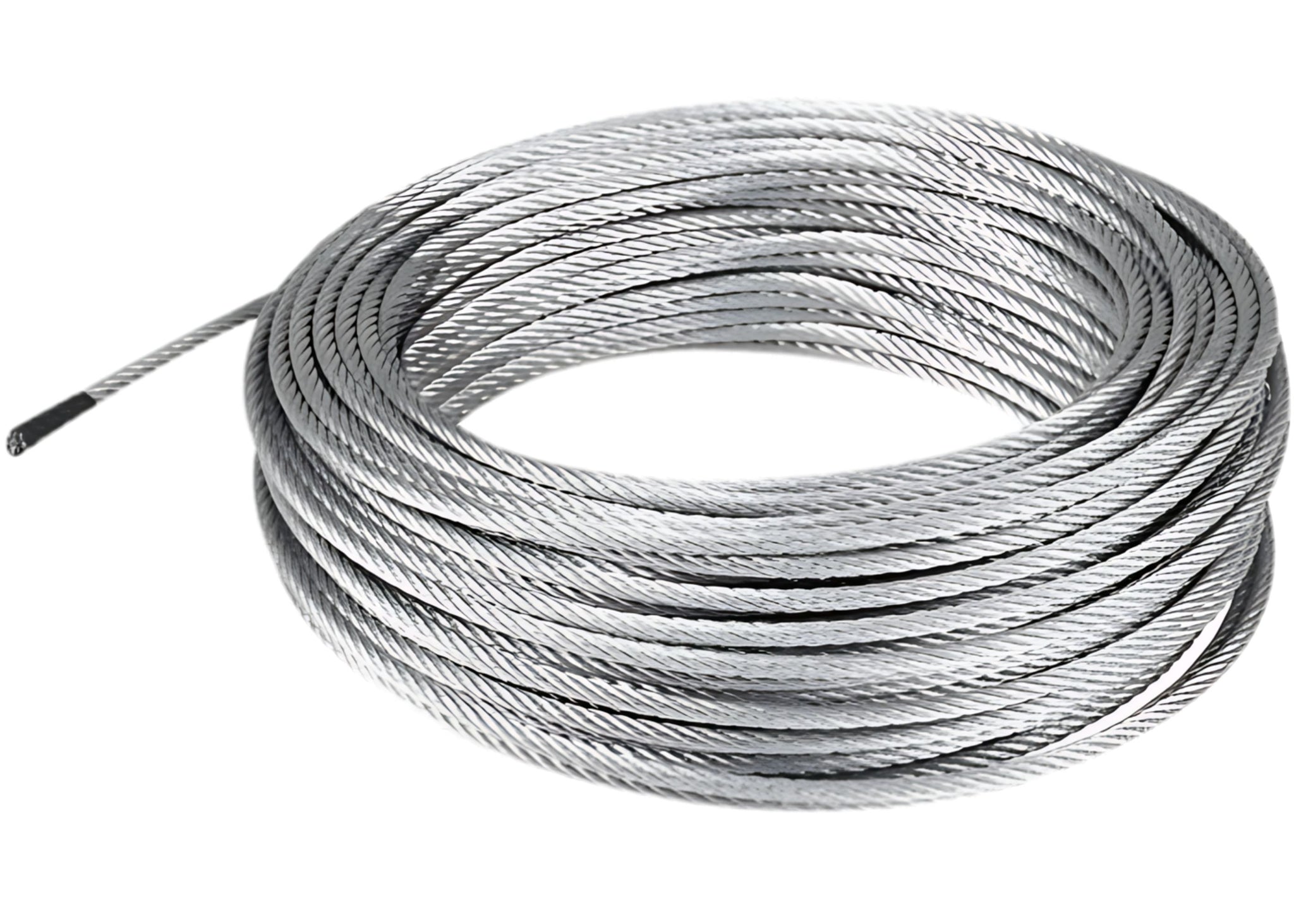

This 9/16" galvanized aircraft cable wire rope features a 6x19 construction, offering a balanced combination of strength and flexibility for demanding applications. Manufactured from improved plow steel (IPS), it delivers dependable tensile performance with a minimum breaking strength of 26,100 lb. The independent wire rope core (IWRC) enhances structural stability and resistance to crushing under load. Its galvanized finish provides protection against corrosion, making it suitable for outdoor and marine environments. Common uses include rigging, hoisting, winch lines, towing, construction support, and general industrial applications. Available in multiple reel lengths from 100 ft to 1000 ft, it provides versatility for projects of varying scale.
Key Features
›
Made from improved plow steel (IPS) for reliable tensile strength and durability
›
Independent wire rope core (IWRC) adds stability and resistance to crushing under heavy loads
›
Galvanized finish helps protect against corrosion in outdoor and marine environments
›
Suitable for rigging, hoisting, winching, towing, and general construction applications
Ideal Applications
›Winch lines — vehicle, industrial, utility, and recovery winches.
›Lifting slings & rigging — fabrication of slings, chokers, and other rigging assemblies when properly rated fittings are used.
›Hoisting — general lifting and material-handling equipment.
›Construction — pulling, securing, temporary rigging, and equipment applications.
Technical Specifications
Diameter
9/16"

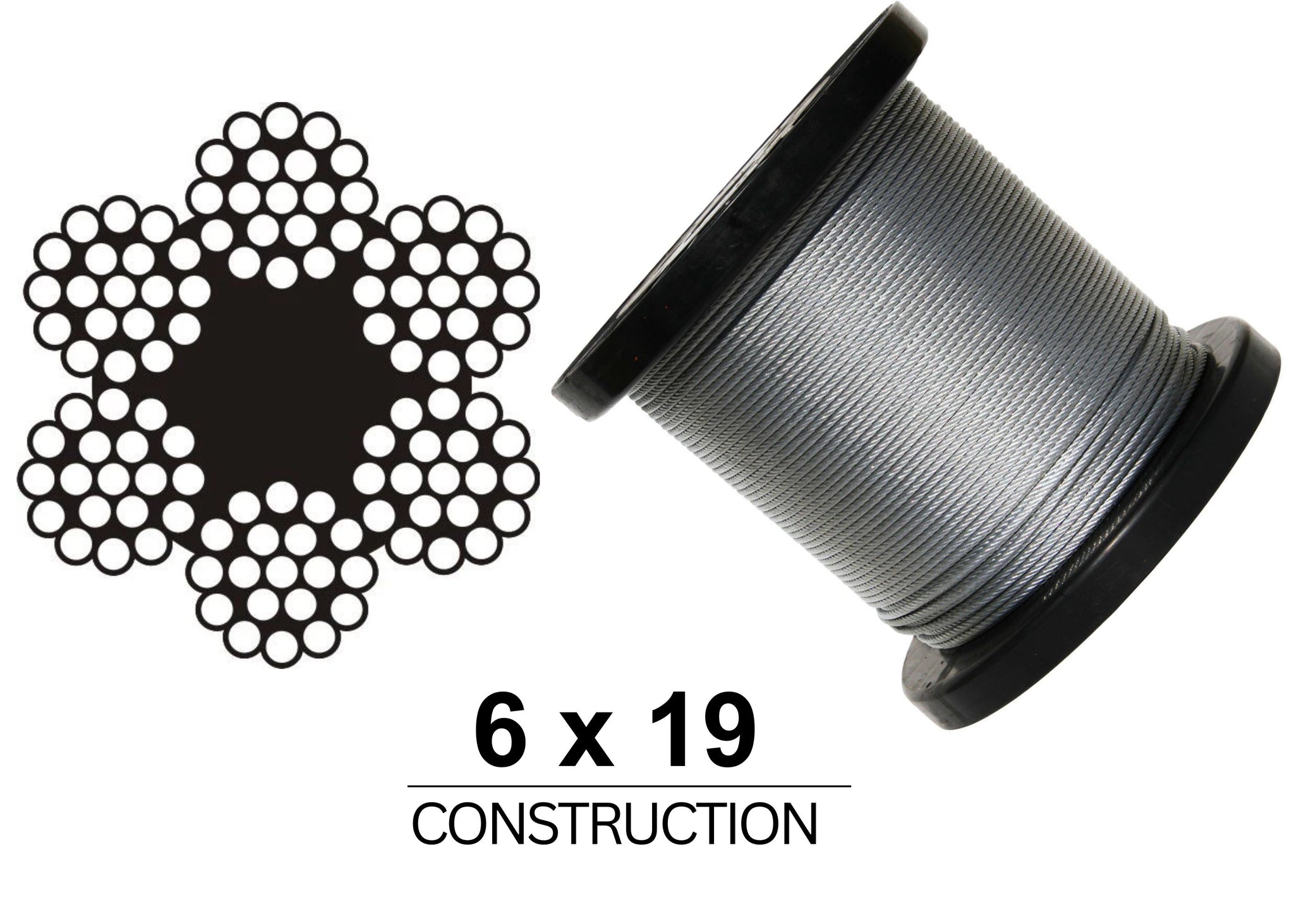

Construction
6x19 IWRC
Grade
EIPS (Extra Improved Plow Steel)
Breaking Strength
33,600 lb
Finish
Galvanized Steel
Lay
Right-Hand Regular Lay (RRL)
Typical Chemical Composition
Typical filler-wire analysis (wt %). Single values are maximums; iron is the balance.
Element
Typical Wire (wt %)
Carbon (C)
0.03 max
Chromium (Cr)
18.0 – 20.0 (typ. 19.0)
Nickel (Ni)
11.0 – 14.0 (typ. 12.5)
Molybdenum (Mo)
2.0 – 3.0 (typ. 2.5)
Manganese (Mn)
1.0 – 2.5 (typ. 1.8)
Silicon (Si)
0.65 – 1.00 (typ. 0.85)
Phosphorus (P)
0.03 max
Sulfur (S)
0.03 max
Iron (Fe)
Balance

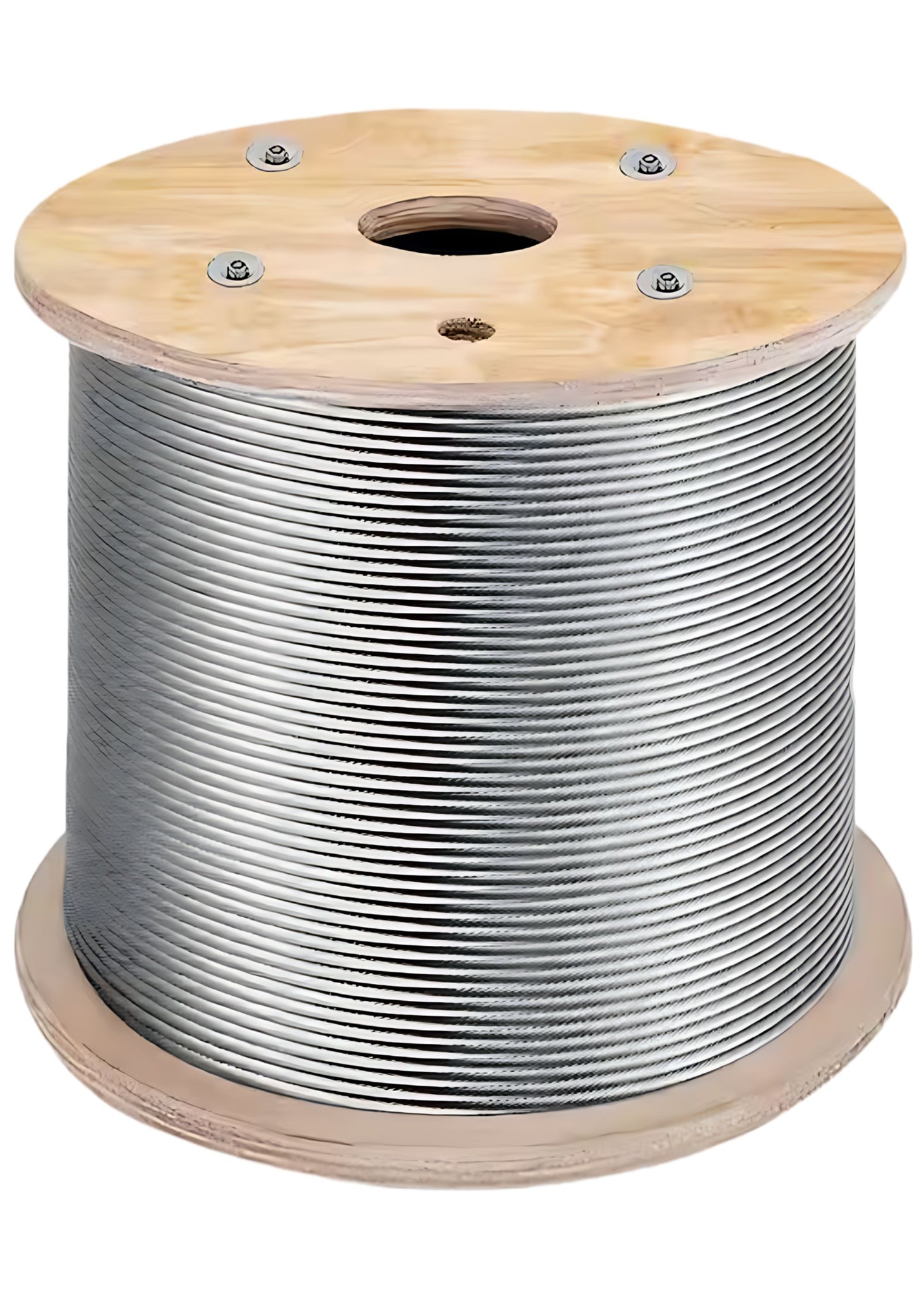

Available Size & Reel Length
Diameter
9/16"
Reel Lengths
100 ft, 200 ft, 250 ft, 300 ft, 500 ft, 1,000 ft
Recommended amperage ranges are general guidelines; optimal settings vary with base-metal thickness, joint design, shielding gas, and welding position. Store wire in a dry location to prevent oxidation and ensure smooth feeding.
⚠ WARNING: This product and the fumes and gases produced when welding it can expose you to chemicals including nickel and hexavalent chromium compounds, which are known to the State of California to cause cancer, and manganese, which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
