Munhwa Steel Marker, Washable 8mm Chisel Nib — 12 Count Box
Precio habitual
$23.00
Oferta

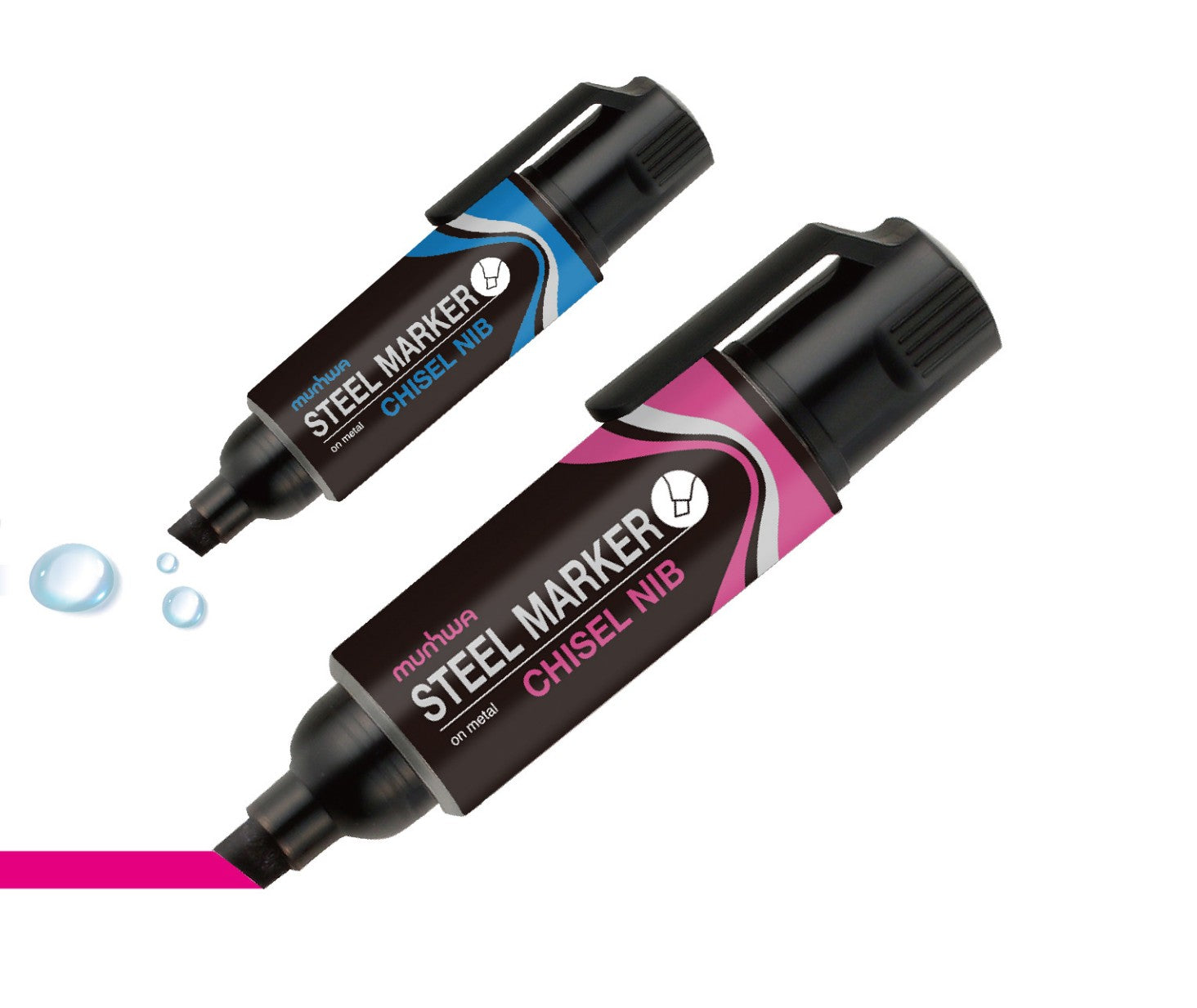

Munhwa SM Steel Marker is a purpose-built washable industrial marker for metal — a bold 8 mm chisel mark that stays put through handling and production, then washes off completely with water, alkali or acid cleaning. It is the marker automotive weld shops and press shops reach for when a part has to be identified in-process but must arrive at paint with a clean surface.
Made in Korea by Munhwa (Kangnam KPI Co., Ltd.), a dedicated marker manufacturer since 1949. Sold as a 12-count box (1 dozen) in Blue and Pink — the two high-visibility colors specified for steel and galvanized work.
Key Features
- Removable by water, alkali and acid washing — no halo, no ghosting, no residue left to interfere with downstream priming or painting.
- 8 mm chisel nib (4 mm on edge) — broad, high-contrast marks readable from across a bay; turn the chisel for a narrower line.
- Alcohol-based ink — fast drying, stays legible through in-process handling, stacking and transfer.
- 10 g ink charge — heavy-duty capacity for high-volume production marking.
- Purpose-designed for automotive weld and press shops — marks on steel, galvanized, stainless and coated blanks.
- Two high-visibility colors — Blue (SM-02) and Pink (SM-10), chosen for contrast against bare and oiled steel.
Applications
- Automotive weld shops — body-in-white part identification, repair and rework flags, station routing
- Press & stamping shops — blank, coil and die-set marking on parts headed for wash and paint
- Metal fabrication — temporary cut, bend and fit-up references that must disappear before finishing
- Quality control — hold tags, witness marks, sort and inspection notation on in-process parts
- Galvanizing & coating lines — pre-treatment identification that washes out in the cleaning bath
- Steel service centers — temporary customer, lot and grade identification

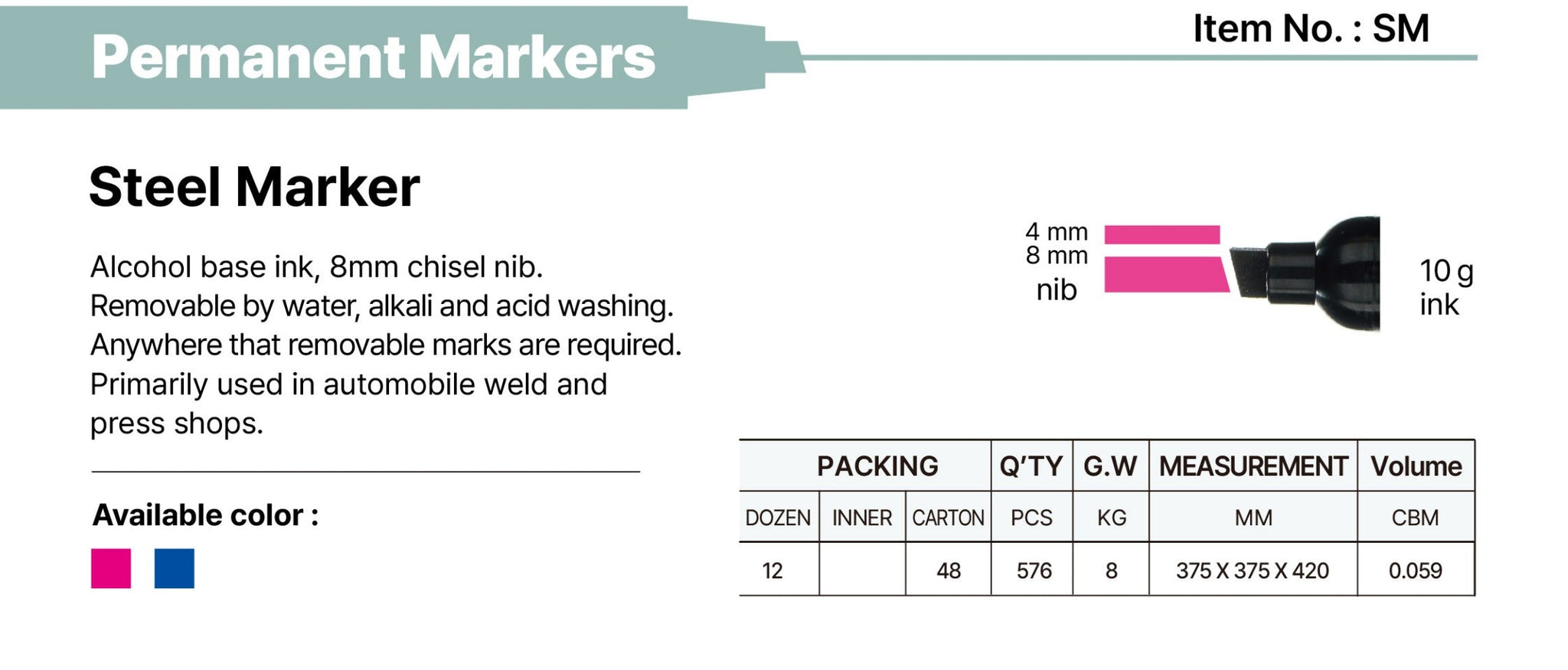

Technical Specifications
| Manufacturer | Munhwa / Kangnam KPI Co., Ltd. (Korea, est. 1949) |
| Series | SM — Steel Marker, Chisel Nib |
| Ink Type | Alcohol-based, water/alkali/acid removable |
| Nib | 8 mm chisel (4 mm on edge) |
| Ink Capacity | 10 g per marker |
| Removal | Water wash, alkali wash or acid wash |
| Primary Use | Automotive weld shops and press shops |
| Selling Unit | 12 pcs per box (1 dozen), single color |
| Master Carton | 48 boxes / 576 pcs · 8 kg · 375 × 375 × 420 mm · 0.059 CBM |
| Country of Origin | Republic of Korea |
Colors, Item Numbers & Barcodes
| Color | Item No. | Barcode (EAN) |
|---|---|---|
| Blue | SM-02 | 8801006722871 |
| Pink | SM-10 | 8801006722864 |
Blue and Pink are the only two colors produced in the SM Steel Marker line.
How Munhwa Steel Marker Compares
Removable / washable industrial markers commonly used in North American weld and press shops.
| Product | Removal Method | Nib | Ink Vol. | Colors |
|---|---|---|---|---|
| Munhwa SM Steel Marker (this product) | Water, alkali or acid wash | 8 mm chisel | 10 g | 2 |
| U-Mark WASHOFF Water Removable Paint Marker | Water bath | Reversible bullet/chisel | 13 ml | 6 |
| U-Mark EZ OFF Wet Erase Industrial Marker | Damp cloth | Reversible bullet/chisel | 13 ml | 4 |
| Dykem Rinz-Off Washable Marker | Water rinse | Bullet | n/a | 3 |
| Markal Trades-Marker / removable series | Varies by grade | Crayon / bullet | n/a | Varies |
Competitor specifications are published by their respective manufacturers and are listed for comparison only. All brand names are the property of their owners.
Why Buy the Munhwa Line
- The widest removable mark in the class. An 8 mm chisel lays down a mark an operator can read at a glance from several feet away — no squinting at a bullet-tip scribble.
- Three removal chemistries, not one. Water, alkali and acid wash all take it off, so it fits existing pre-treatment lines without a process change.
- 76+ years of marker manufacturing. Munhwa has produced writing instruments in Korea since 1949 as a dedicated marker specialist.
- One brand across the plant. SM Steel Marker (washable), XFPM (xylene free paint), PM (oil paint), PMM (permanent) and WBM (dry erase) cover every marking job in the building.
Storage & Handling
- Store horizontally, capped, in a cool dry place away from direct sunlight and heat.
- Re-cap immediately after use to keep the chisel nib from drying.
- Always validate removal on a sample part before rolling into production, since wash chemistry and dwell time vary by line.
- Keep out of reach of children. Refer to the manufacturer SDS for full handling guidance.
Frequently Asked Questions
Will the mark survive until the wash stage?
Yes. The ink is designed to stay legible through in-process handling, stacking and transfer, and only lifts under an actual wash — water, alkali or acid.
Does it leave a ghost or halo after washing?
No. It is formulated to wash out cleanly so the surface accepts primer and paint normally.
How is this different from the U-Mark WASHOFF?
The WASHOFF is a removable paint marker with a reversible bullet/chisel tip and six colors. The Munhwa SM is a removable ink marker with a fixed 8 mm chisel and a much wider stroke, aimed squarely at automotive weld and press shop marking.
Why only Blue and Pink?
Those are the only two colors Munhwa produces in the SM Steel Marker line.
