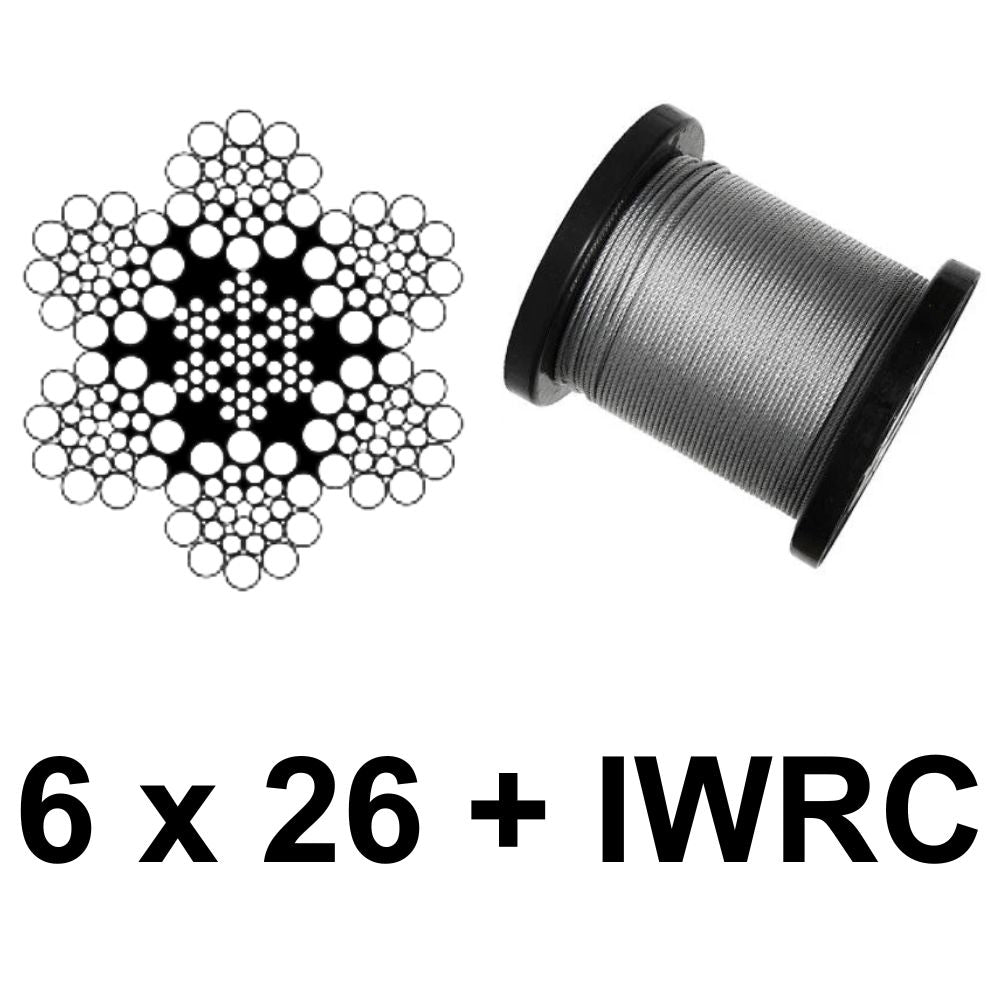

This 5/8" premium galvanized aircraft cable wire rope features a 6x26 construction, delivering a flexible design with strong load-handling capability for demanding applications. Made from extra improved plow steel (EIPS), it provides enhanced tensile strength with a minimum breaking strength of 41,200 lb. The drawn wire process involves pulling the steel through precision dies, resulting in a more uniform diameter, smoother surface, and improved strength consistency throughout the cable. An independent wire rope core (IWRC) adds internal reinforcement, helping the rope resist crushing and maintain its shape under heavy loads. Its galvanized coating helps protect against corrosion, making it suitable for outdoor, marine, and industrial environments. This wire rope is commonly used for rigging, crane operations, hoisting, winch lines, suspension systems, and structural support in construction and material handling applications
Key Features
›
Independent wire rope core (IWRC) adds stability and resistance to crushing under heavy loads
›
Galvanized finish helps protect against corrosion in outdoor and marine environments
›
Ideal for rigging, hoisting, crane use, winching, towing, and structural support applications
›Winch lines — vehicle, industrial, utility, and recovery winches.
›Lifting slings & rigging — fabrication of slings, chokers, and other rigging assemblies when properly rated fittings are used.
›Hoisting — general lifting and material-handling equipment.
›Construction — pulling, securing, temporary rigging, and equipment applications.
Technical Specifications
Diameter
5/8"
Construction
6x26 IWRC
Grade
EIPS (Extra Improved Plow Steel)
Breaking Strength
41,200 lb
Finish
Galvanized Steel
Lay
Right-Hand Regular Lay (RRL)
Typical Chemical Composition
Typical filler-wire analysis (wt %). Single values are maximums; iron is the balance.
Element
Typical Wire (wt %)
Carbon (C)
0.03 max
Chromium (Cr)
18.0 – 20.0 (typ. 19.0)
Nickel (Ni)
11.0 – 14.0 (typ. 12.5)
Molybdenum (Mo)
2.0 – 3.0 (typ. 2.5)
Manganese (Mn)
1.0 – 2.5 (typ. 1.8)
Silicon (Si)
0.65 – 1.00 (typ. 0.85)
Phosphorus (P)
0.03 max
Sulfur (S)
0.03 max
Iron (Fe)
Balance
Available Size & Reel Length
Diameter
5/8"
Reel Lengths
100 ft, 200 ft, 250 ft, 300 ft, 500 ft, 1,000 ft
Recommended amperage ranges are general guidelines; optimal settings vary with base-metal thickness, joint design, shielding gas, and welding position. Store wire in a dry location to prevent oxidation and ensure smooth feeding.
⚠ WARNING: This product and the fumes and gases produced when welding it can expose you to chemicals including nickel and hexavalent chromium compounds, which are known to the State of California to cause cancer, and manganese, which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
