Product Description

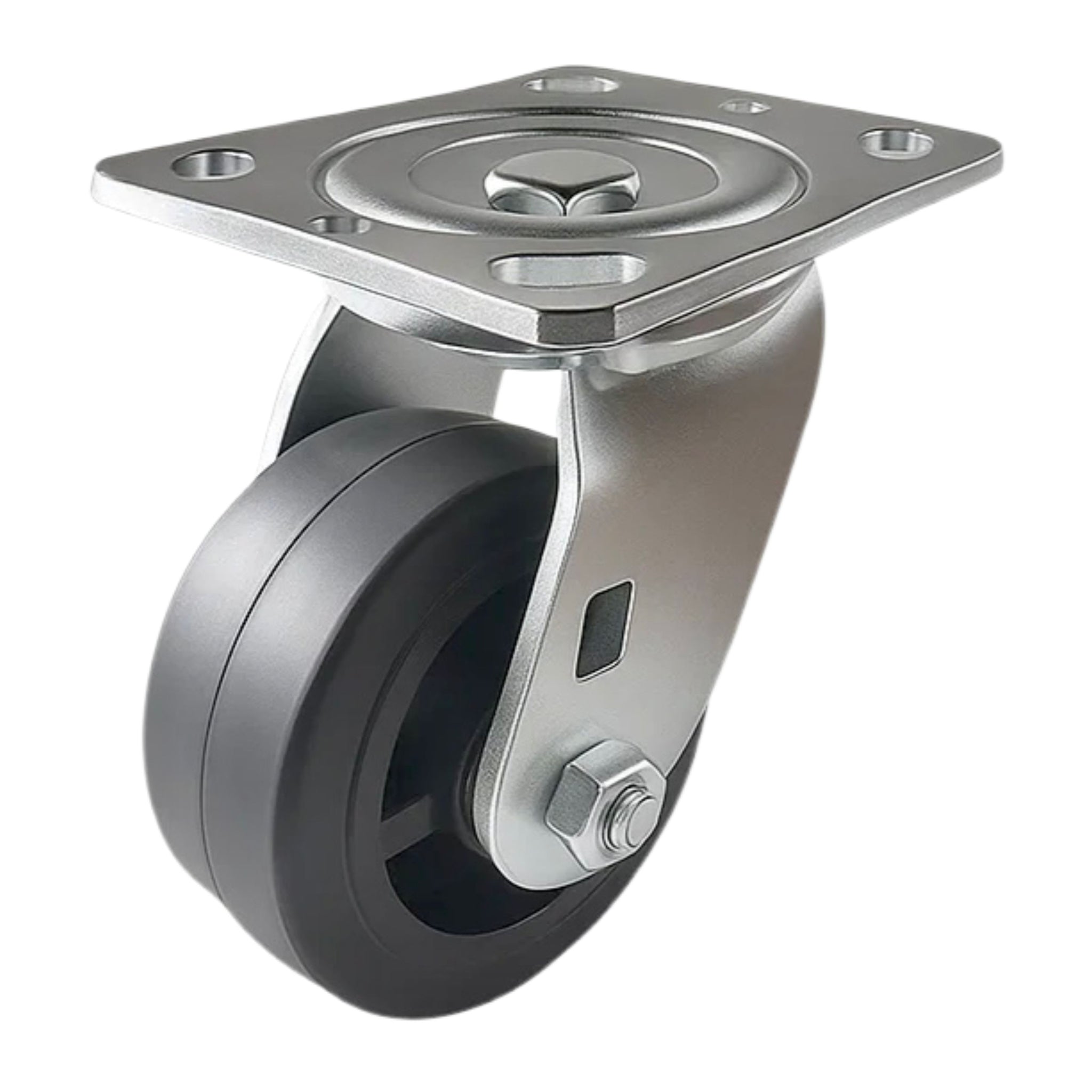

This Series 40 medium heavy-duty swivel caster is designed for smooth maneuverability and dependable performance in a wide range of industrial and commercial applications. It features a 4-inch x 2-inch rubber wheel bonded to a cast iron core, providing a combination of strength, durability, and shock absorption. The rubber tread helps protect floors while reducing noise and vibration during operation.

Constructed with a cold-forged top plate and precision components, this caster includes a double-row ball bearing swivel raceway for smooth 360° rotation and easy directional control. Hardened raceways and a built-in Zerk fitting allow for routine lubrication, helping extend service life and maintain consistent performance over time.

With an overall height of 5-5/8", a 1/2" axle, and a 5/8" kingpin, this caster supports loads up to 350 lbs. The swivel design makes it ideal for applications requiring frequent movement and maneuverability, such as platform trucks, stock carts, and general material handling equipment.

The top plate measures 3-15/16" x 4-1/2" with bolt hole spacing of 2-5/8" x 3-5/8" to 3" x 3", and accommodates 3/8" mounting hardware.

Part Number: 40-40S-A1-RC

Bullet Points

• Supports loads up to 350 lbs for medium heavy-duty industrial and commercial use

• 4" x 2" rubber on cast iron wheel provides durability with shock absorption and floor protection

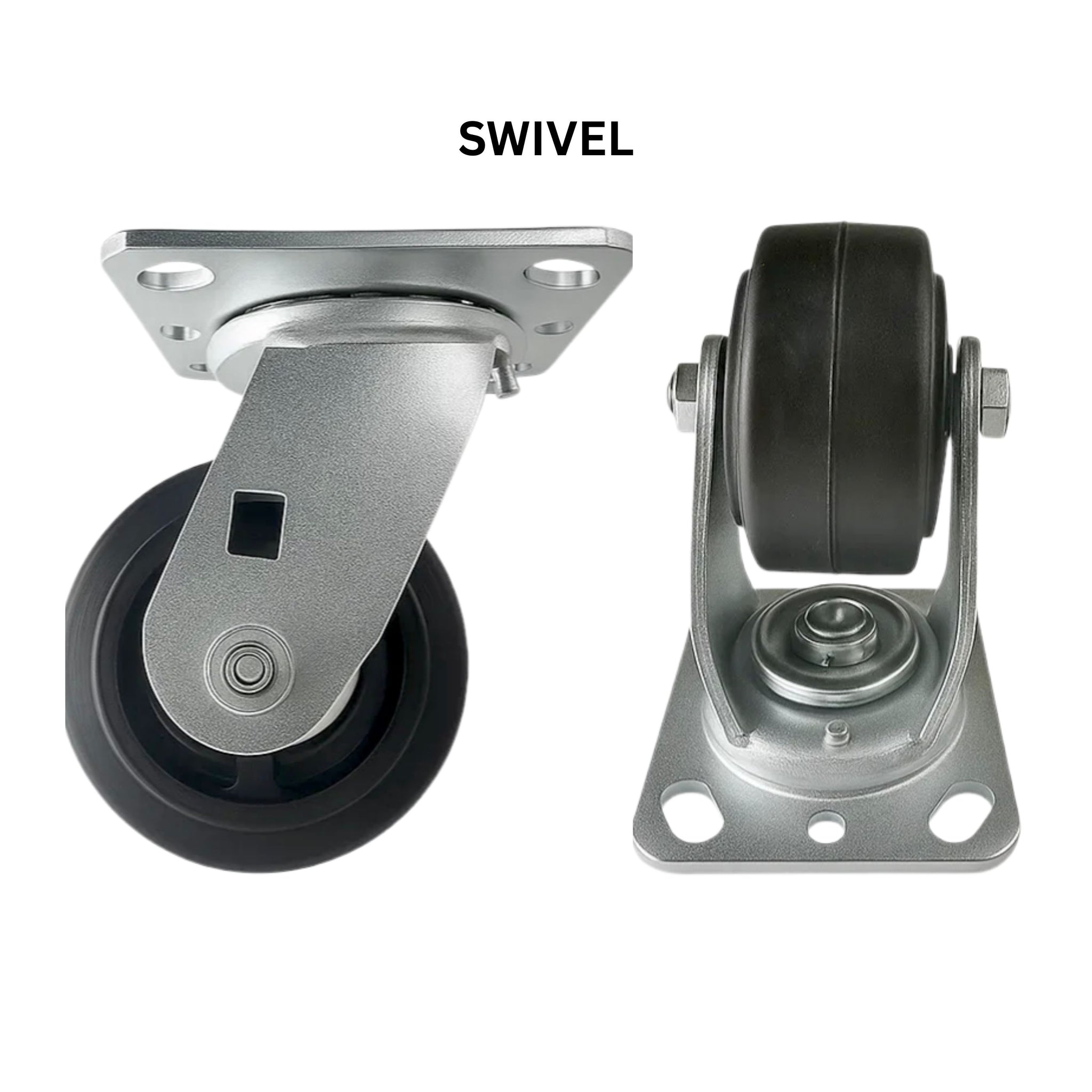

• Swivel design with double-row ball bearings ensures smooth 360° maneuverability

• Hardened raceways with Zerk fitting support long service life and easy maintenance

• Top plate mount (3-15/16" x 4-1/2") fits standard bolt patterns with 3/8" hardware
