E7024 and E7014

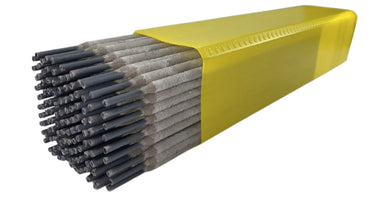

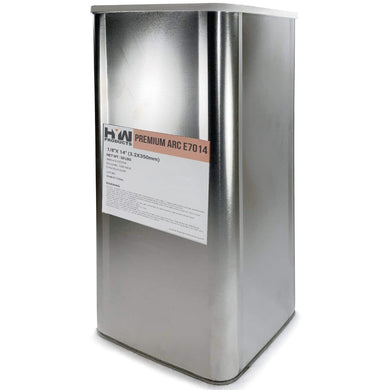

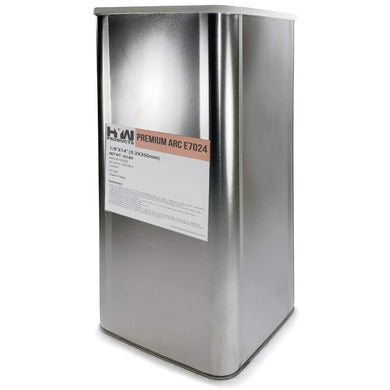

E7014 and E7024 iron-powder stick electrodes are high-deposition, 70 ksi mild steel rods (AWS A5.1 / ASME SFA-5.1) built for fast, clean fabrication welds. E7014 is an all-position iron-powder rutile rod that fills poor fit-up with a smooth, fast arc; E7024 is a heavy iron-powder drag rod for very high-speed flat and horizontal-fillet welds on plate. Available in 3/32", 1/8", and 5/32", in 10 lb boxes and 50 lb sealed cans.
| E7014 | E7024 | |
|---|---|---|
| Tensile | 70,000 psi min | 70,000 psi min |
| Current | AC or DC± | AC or DC± |
| Positions | All positions | Flat & horizontal fillet only |
| Coating | Iron-powder titania | Heavy iron powder (high deposition) |
| Best for | General/all-position fabrication, poor fit-up | High-speed fillets on heavy plate |
Frequently Asked Questions
What is the difference between E7014 and E7024?
E7014 is all-position and handles a wider range of joints, while E7024 carries a much heavier iron-powder coating for the highest deposition and travel speed — but only in the flat and horizontal-fillet positions. Use E7014 for versatility, E7024 for production fillet welding on plate.
Can E7024 weld vertical or overhead?
No. E7024 is a flat / horizontal-fillet-only rod. For out-of-position work, choose all-position E7014, E7018, or E6011.
› Compare all six mild steel stick electrodes (E6010 · E6011 · E6013 · E7014 · E7018 · E7024)
