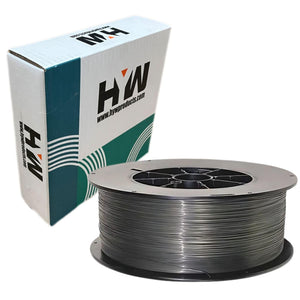

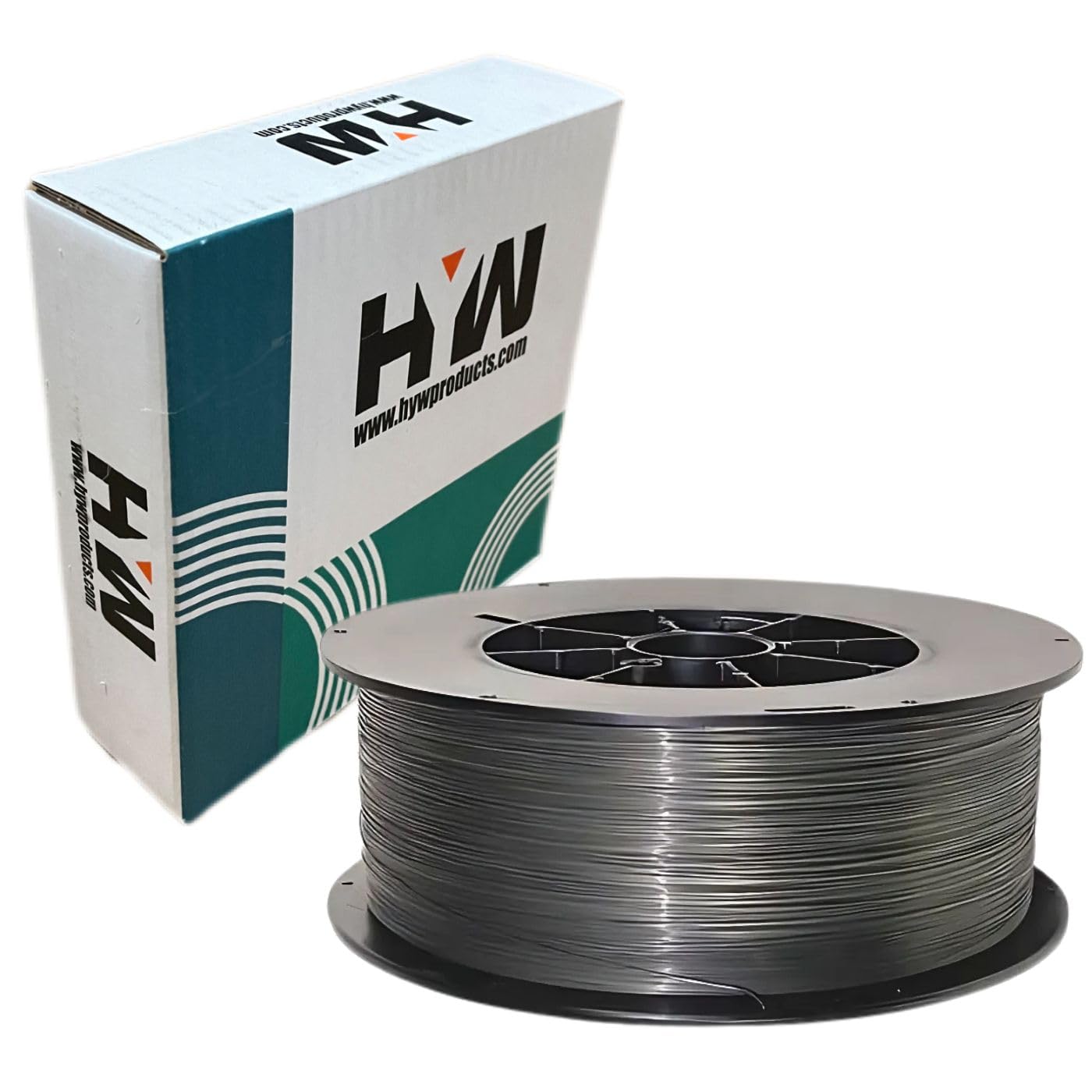

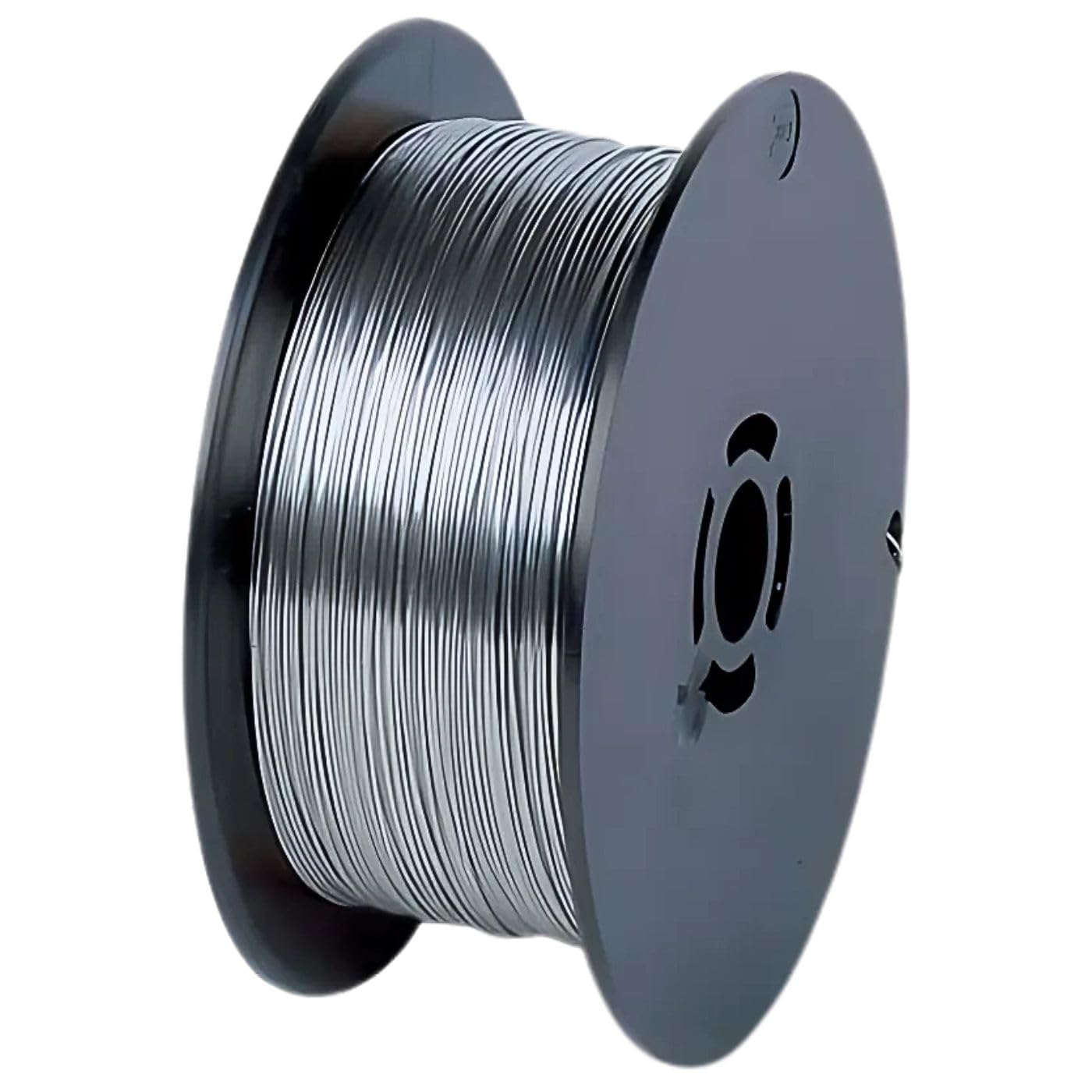

E71T-1 Gas-Shielded Flux-Cored Welding Wire is a rutile, all-position flux-cored wire that delivers a smooth, spray-like arc, high deposition rates, and excellent bead appearance on mild and low-carbon steel. Run with CO² or 75/25 Ar/CO² shielding gas, it is a production workhorse for fabrication and structural welding.
Key Features
Smooth, stable spray-type arc with low spatter
High deposition rate for productive, high-duty-cycle welding
All-position operation, including vertical-up and overhead
Easy slag removal and excellent bead profile
Single- and multi-pass capable
Ideal Applications
Structural steel and heavy fabrication
Shipbuilding, bridges, construction and earthmoving equipment
General plate and pipe fabrication
Production welding requiring high output
Technical Specifications
Classification
AWS A5.20 / A5.20M – E71T-1C/-1M
Process
FCAW-G (gas-shielded flux-cored)
Shielding Gas
CO² or 75/25 Ar/CO²
Polarity
DCEP (DC electrode positive / reverse)
Number of Passes
Single & multi-pass
Tensile Strength
70,000 psi (min)
Available Diameters
0.035 in. · 0.045 in. · 0.052 in. · 0.062 in.
Welding Positions
All-position
Store in a clean, dry area and keep spools sealed when not in use to protect the wire from moisture and ensure smooth feeding and consistent arc performance.
Typical Chemical Composition
Typical all-weld-metal analysis (wt %). Single values are maximums; iron is the balance.
This product can expose you to chemicals including manganese, which is known to the State of California to cause birth defects or other reproductive harm. Welding fumes from this product can also expose you to chemicals known to cause cancer. For more information go to www.P65Warnings.ca.gov.
