Heavy Duty Caster 4" x 2" V-Groove Steel Wheel — Series 40
This Series 40 medium heavy-duty caster pairs a 4" × 2" V-Groove steel wheel with a cold-forged steel top plate for guided, track-style material handling. The machined V-groove tread rides on inverted angle-iron or rail track, keeping carts on a fixed path under heavy load, while the double-row ball bearing swivel raceway, hardened raceways, and built-in Zerk lubrication fitting deliver smooth 360° movement and long service life. Each caster supports loads up to 900 lbs. Choose Swivel or Rigid from the menu above.
Configurations & Part Numbers
| Type |
Movement |
Brake |
Part Number |

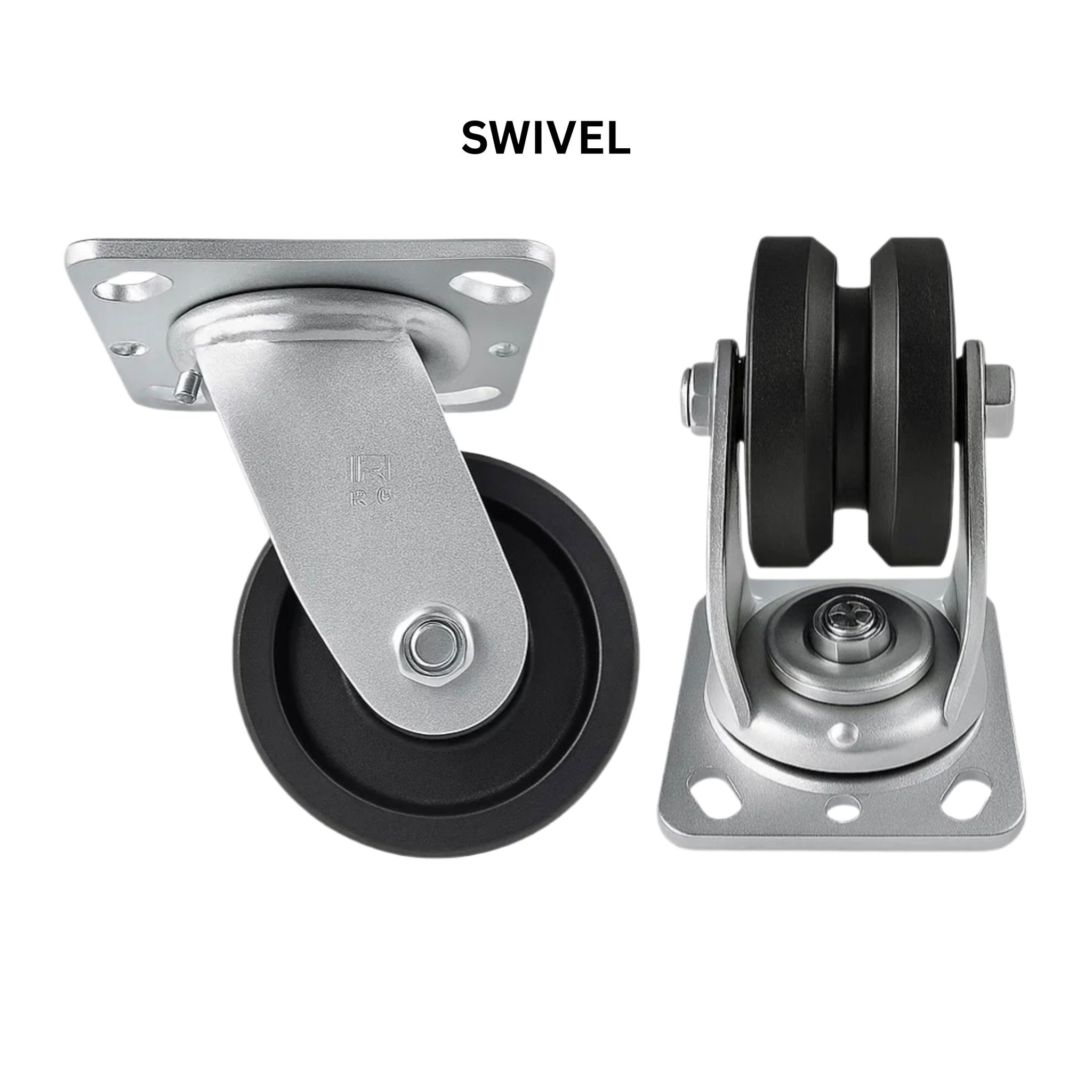

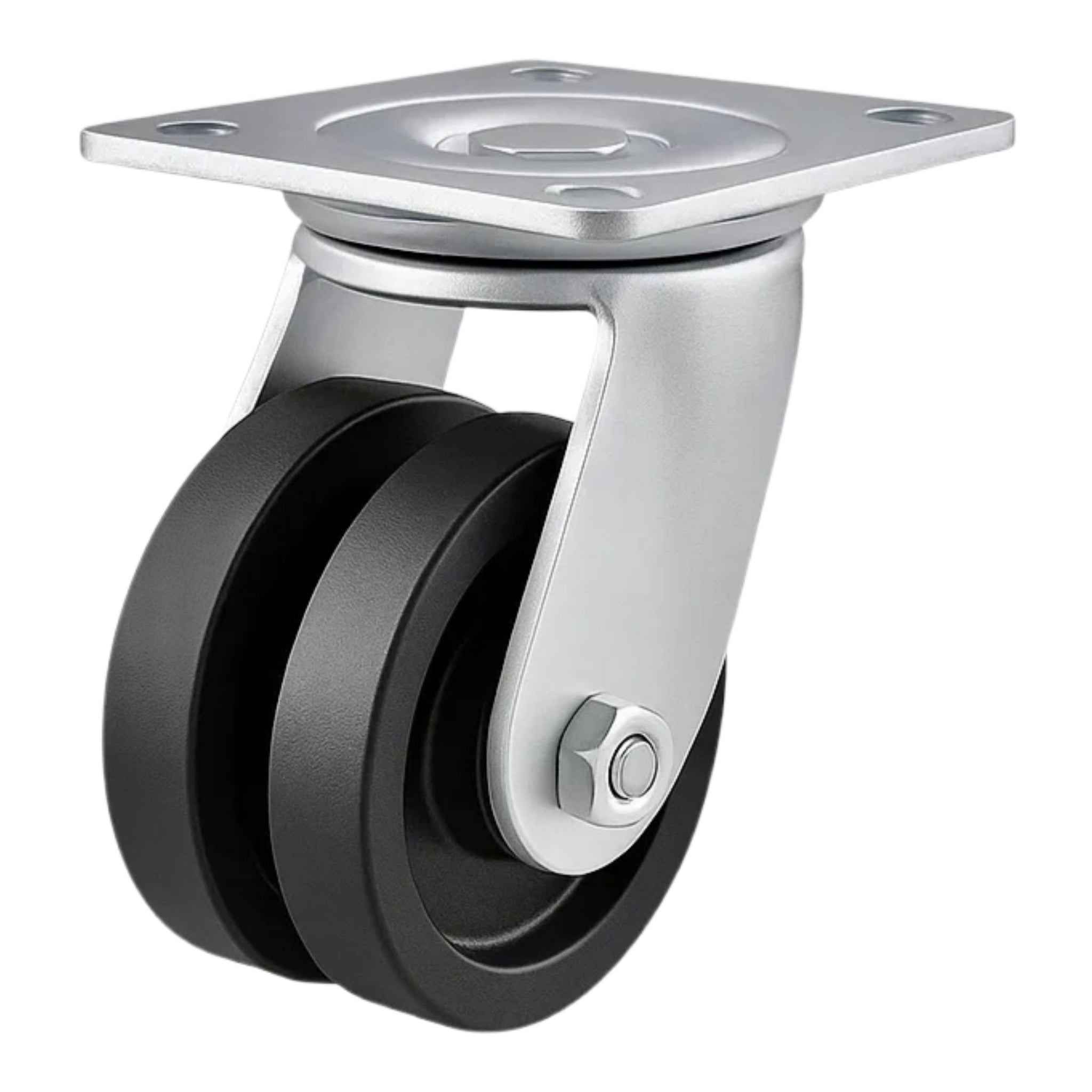

| Swivel |
360° rotation |
— |
40-40S-A1-VG |

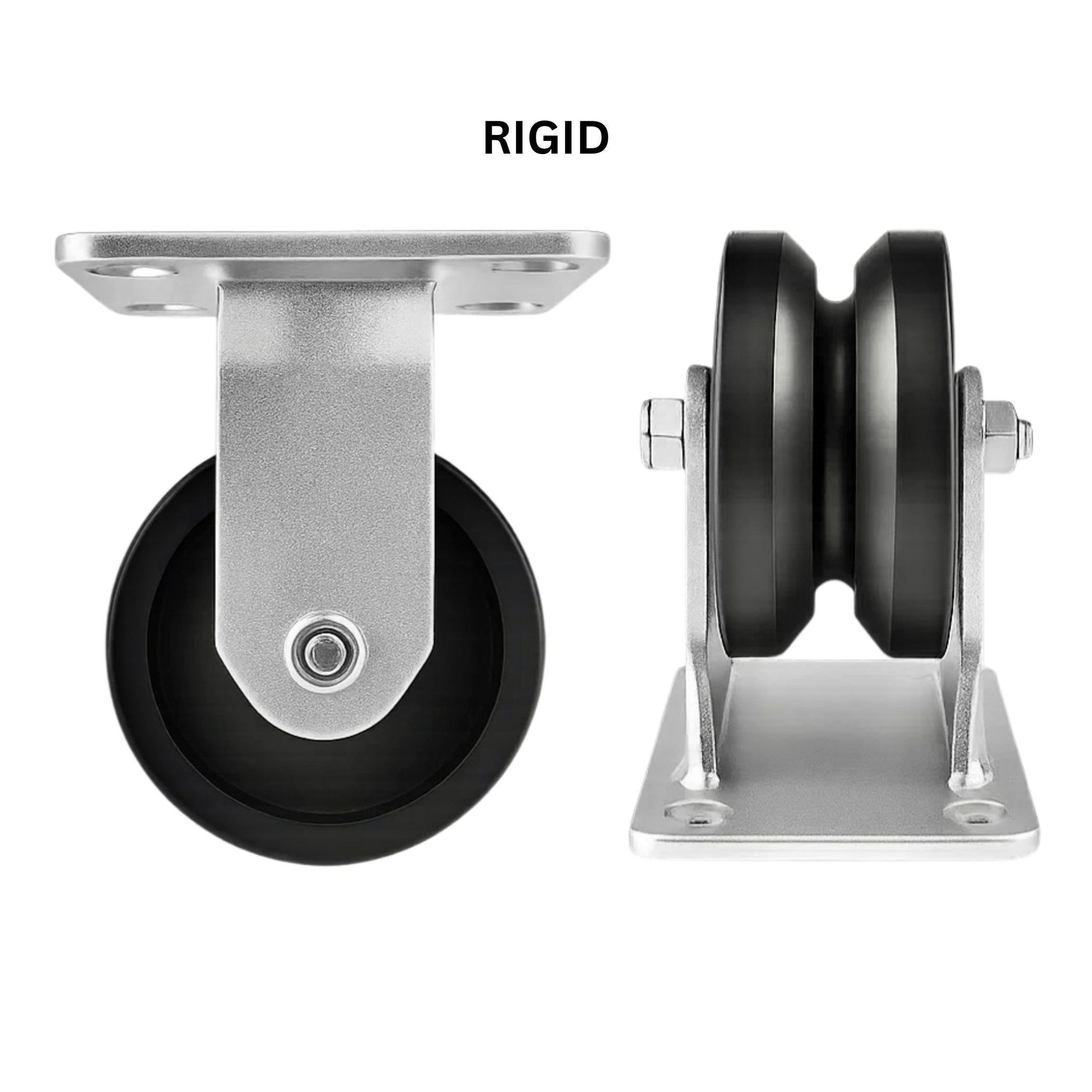

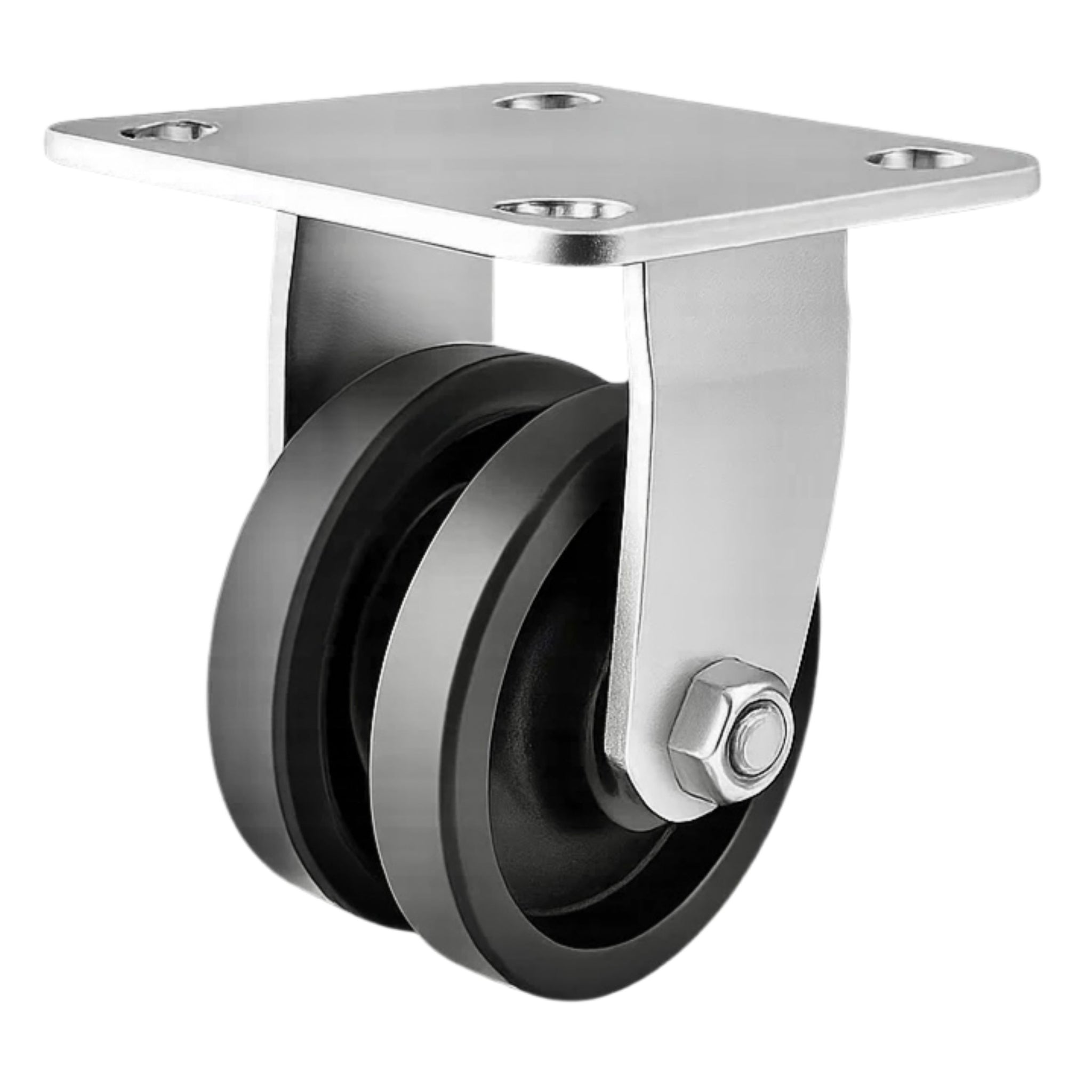

| Rigid |
Fixed / straight-line |
— |
40-40R-A1-VG |
Key Features
- Load capacity up to 900 lbs per caster
- 4" × 2" machined V-Groove steel wheel — rides on angle-iron / rail track for guided travel
- Cold-forged steel top plate with hardened, double-row ball bearing swivel raceway
- 5/8" kingpin and 1/2" axle with built-in Zerk lubrication fitting
- Corrosion-resistant zinc-plated finish for industrial environments
Applications & Common Uses
- Track-guided carts
- Rail-style transport
- Heavy industrial
- Platform trucks
- Stock carts
- Racks
Ideal for track-guided carts and transfer carts, rail-style transport, foundry and heavy-industrial lines, platform trucks, and stock carts where loads must follow a fixed path.

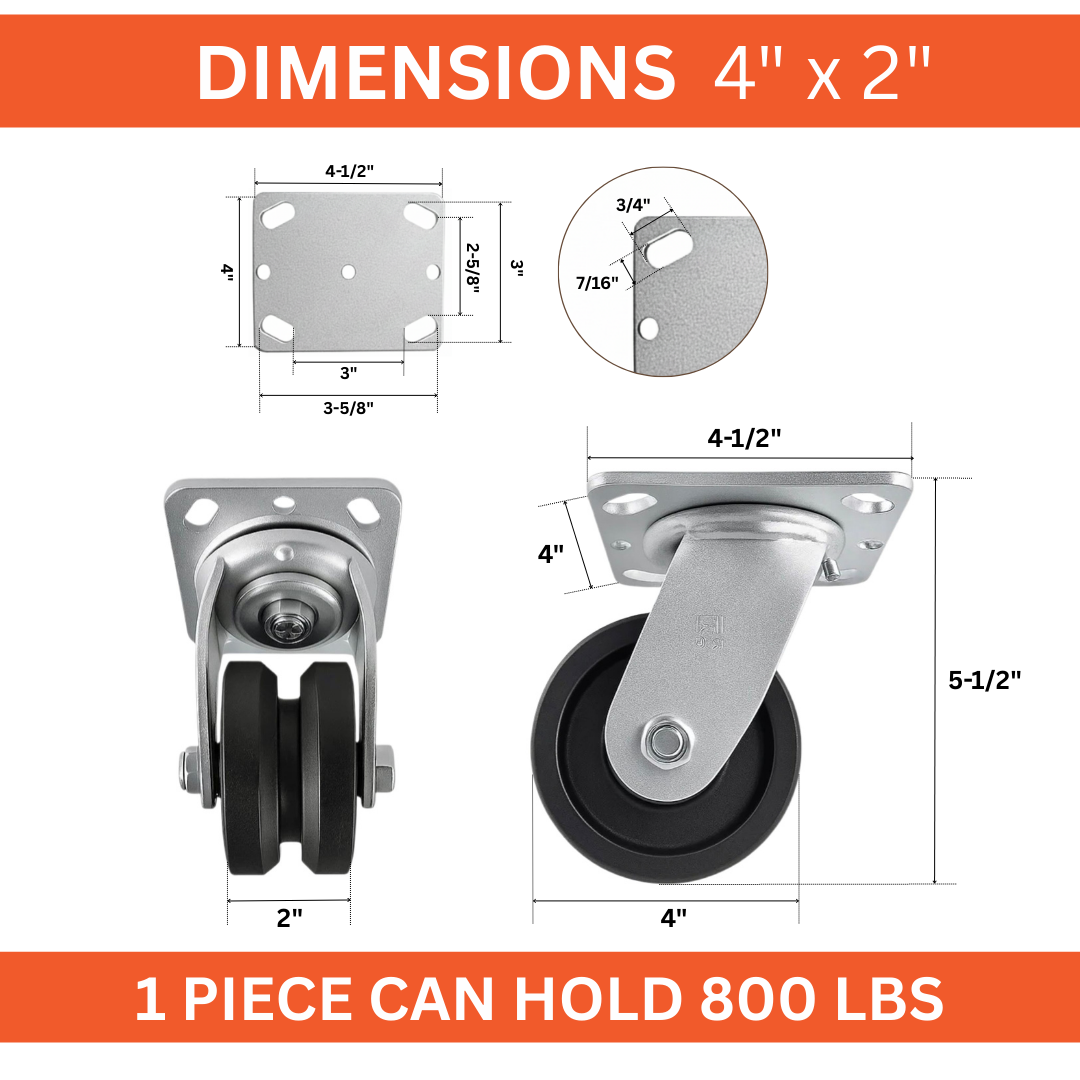

Technical Specifications
| Series |
40 — Medium Heavy Duty |
| Wheel Diameter |
4" |
| Tread Width |
2" |
| Wheel Material |
V-Groove Steel |
| Load Capacity |
900 lbs |
| Overall Height |
5-5/8" |
| Swivel Radius |
3-3/16" |
| Axle Diameter |
1/2" |
| Kingpin |
5/8" |
| Bearing |
Roller |
| Top Plate Size |
3-15/16" x 4-1/2" |
| Bolt Hole Spacing |
2-5/8" x 3-5/8" ~ 3" x 3" |
| Mounting Bolt Size |
3/8" |
| Finish |
Zinc Plated |
