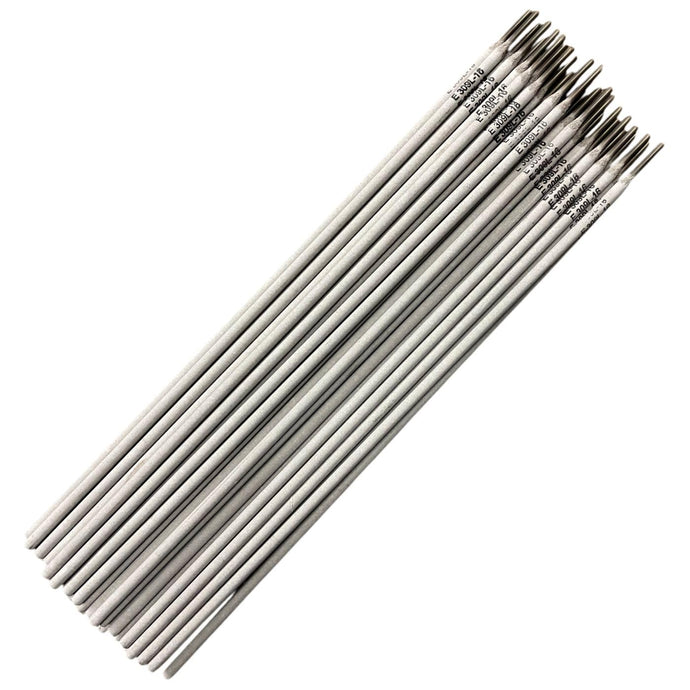

E309L-16 5/32" x 14" 2 lbs Stainless Steel Electrode (2 LBS)
Regular price
$25.92
Sale
Welding Wire & Rod, Casters & Wheels, Rigging Supplies (Cable Wire Ropes) , Markers, Gloves and much more.
Special Price
Fast Shipping
Top Quality
E309L-16 5/32" x 14" 2 lbs Stainless Steel Electrode (2 LBS)
- Brand New European E309L-16 5/32" Welding Rod at Great Price & Quality.
- Good weldibility.
- Well sealed packing from moisture.
- We have other grades and size : E308L-16, E309L-16 & E316L-16 (3/32", 1/8" & 5/32")
|
Applications |
|||||||
|
Welding of SUS 309S or SCS17. Under laying welding of build up welding of SUS304L to carbon steel or low alloy steel. Welding of dissimilar metals such as stainless steel to carbon steel or low alloy steel. |
|||||||
|
|
|||||||
|
Characteristics |
|||||||
|
E309L-16 lime-titania type electrodes for all-position welding, which has excellent usability. As weld metal contains ferrite in austenitic structure, its weldability is excellent and its ultra-low carbon weld metal as welded is excellent in corrosion resistibility and heat resistibility. E309L-16 suitable for welding of parts which might be affected by the dilution of the mother plate. |
|||||||
|
|
|||||||
|
Notes on usage |
|||||||
|
(1) Keep the arc as short as possible. |
|||||||
|
(2) Weaving width should be within two and a half times of electrode's diameter. |
|||||||
|
(3) When the electrodes have absorbed moisture, dry them at 250-300℃ for 60-90 minutes before use. |
|||||||
|
(4) Pay attention that the dilution of mother plate should be excessive. |
|||||||
|
|
|||||||
|
Typical chemical composition of weld metal (%) |
|||||||
|
Product name |
C |
Mn |
Si |
P |
S |
Cr |
Ni |
|
E309L-16 |
0.03 |
1.3 |
0.75 |
0.021 |
0.007 |
23.8 |
12.9 |
|
|
|||||||
|
Typical mechanical properties of weld metal |
|||||||
|
Product name |
TS |
EL |
|
|
|
|
|
|
N/㎟(kgf/㎟) |
% |
|
|
|
|
|
|
|
E309L-16 |
570(58) |
42 |
|
|
|
|
|
|
|
|||||||
|
Size & recommended current range (AC or DC+) |
|||||||
|
Dia. (㎜) |
3/32" |
1/8" |
5/32" |
|
|||
|
|
|||||||
|
Amp. |
F |
50-80 |
70-115 |
100-150 |
|
||
|
V&OH |
45-75 |
65-110 |
90-140 |
|
|||
