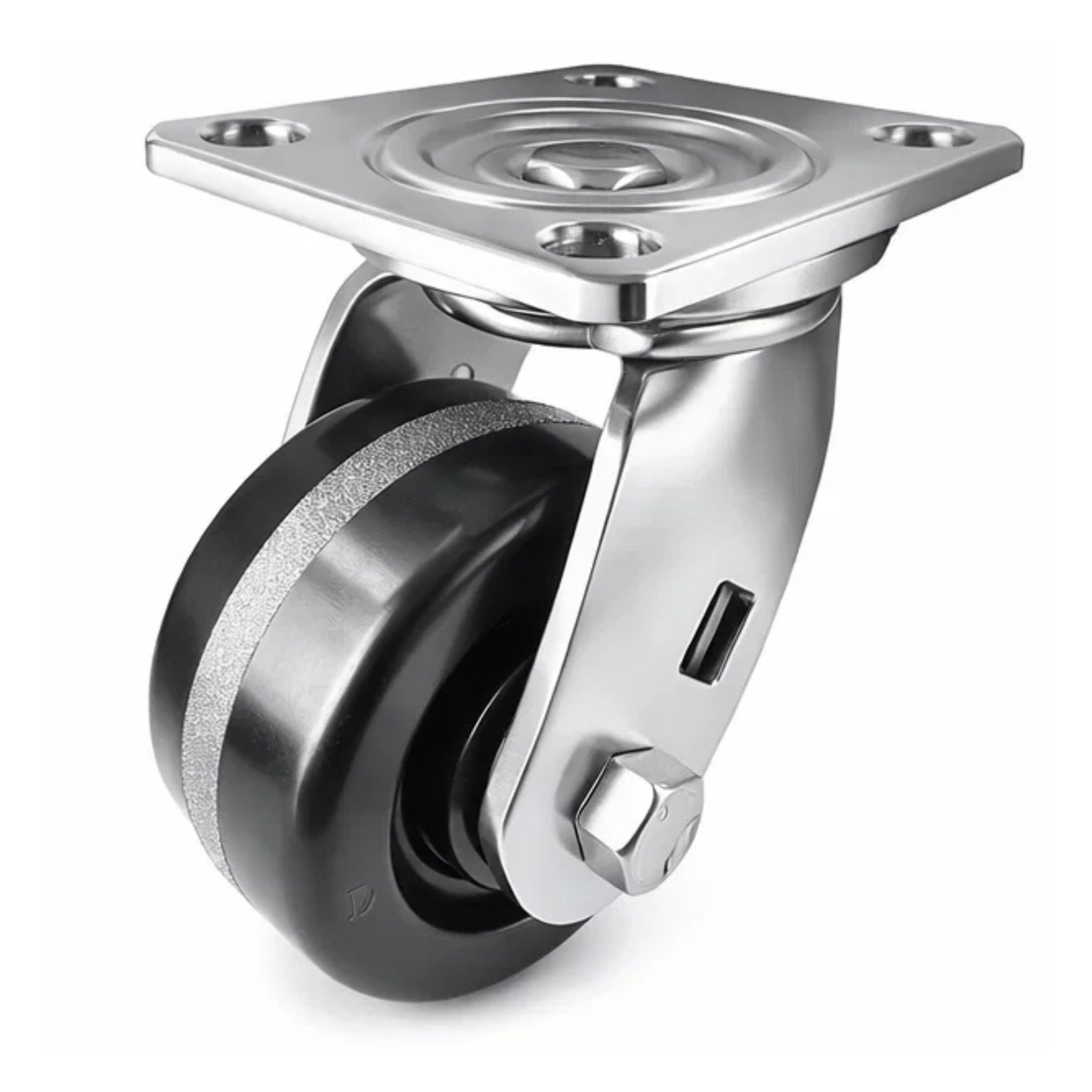

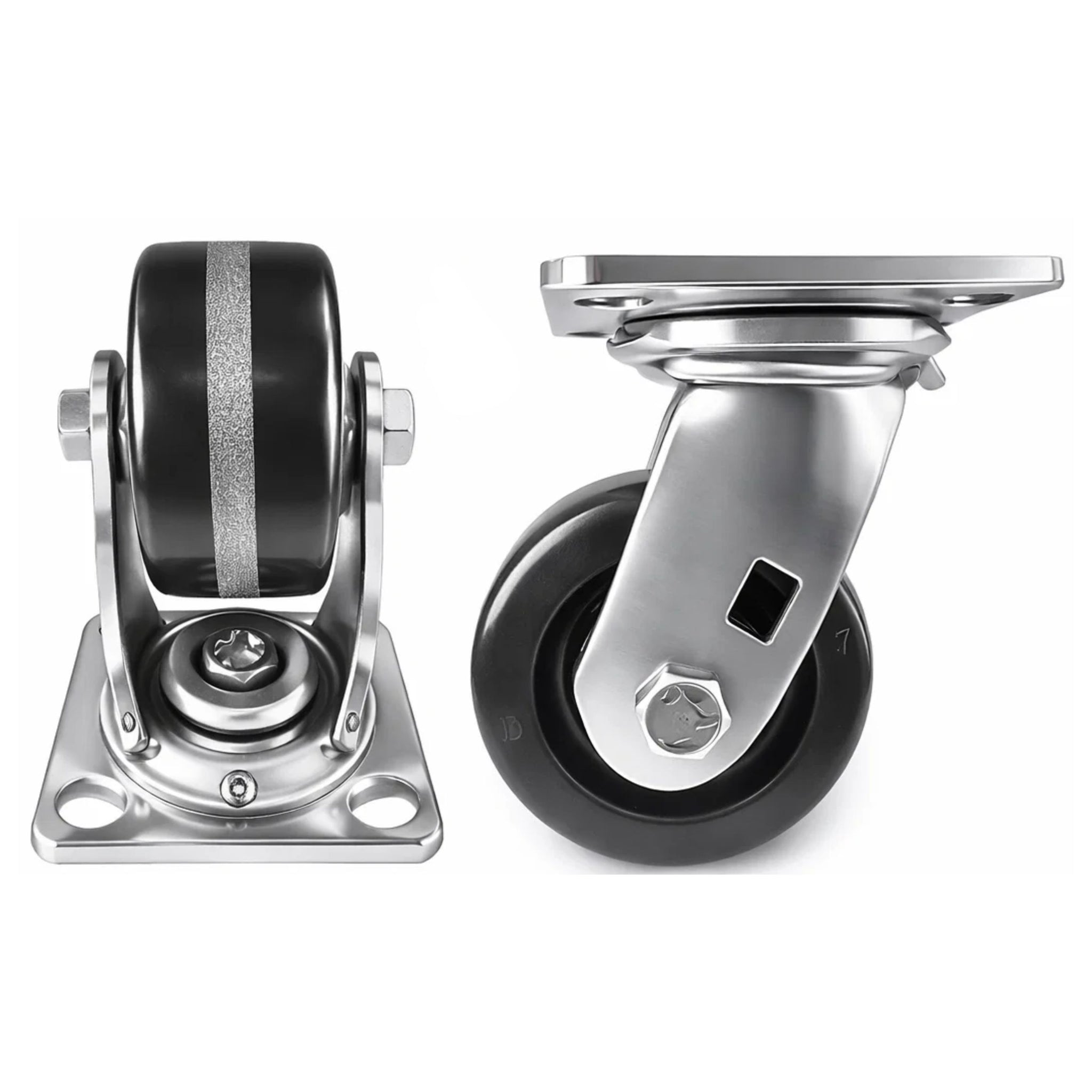

Heavy Duty 4" x 2" Phenolic Wheel Stainless Steel - Swivel

Product Description

This Series 40 medium heavy-duty swivel caster is designed for high-capacity industrial use where strength, stability, and long-term durability are required. It features a 4-inch x 2-inch phenolic wheel that delivers exceptional load-bearing performance, impact resistance, and dependable operation on smooth industrial surfaces. The rigid, hard-wheel construction makes it ideal for heavy loads and high-temperature or debris-prone environments.

Built with a stainless steel yoke and cold-forged top plate, this caster offers excellent corrosion resistance, making it suitable for food service, washdown areas, and demanding material handling applications. The double-row ball bearing swivel raceway provides smooth and controlled rotation, while hardened raceways and a built-in Zerk fitting support easy maintenance and extended service life.

With an overall height of 5-5/8", a 1/2" axle, and a 5/8" kingpin, this caster supports an impressive load capacity of up to 900 lbs. The swivel design ensures excellent maneuverability for heavy equipment, making it well-suited for platform trucks, stock carts, and industrial transport systems.

The top plate measures 3-15/16" x 4-1/2" with bolt hole spacing of 2-5/8" x 3-5/8" to 3" x 3", and accommodates 3/8" mounting hardware.

Part Number: 40-40S-A1-PH-STS

Bullet Points

• Supports heavy-duty loads up to 900 lbs for industrial and commercial applications
• 4" x 2" phenolic wheel provides maximum strength and resistance to wear under heavy loads
• Swivel design with double-row ball bearings ensures smooth and controlled maneuverability
• Stainless steel construction with Zerk fitting enhances durability in demanding environments
• Top plate mount (3-15/16" x 4-1/2") fits standard bolt patterns with 3/8" hardware
