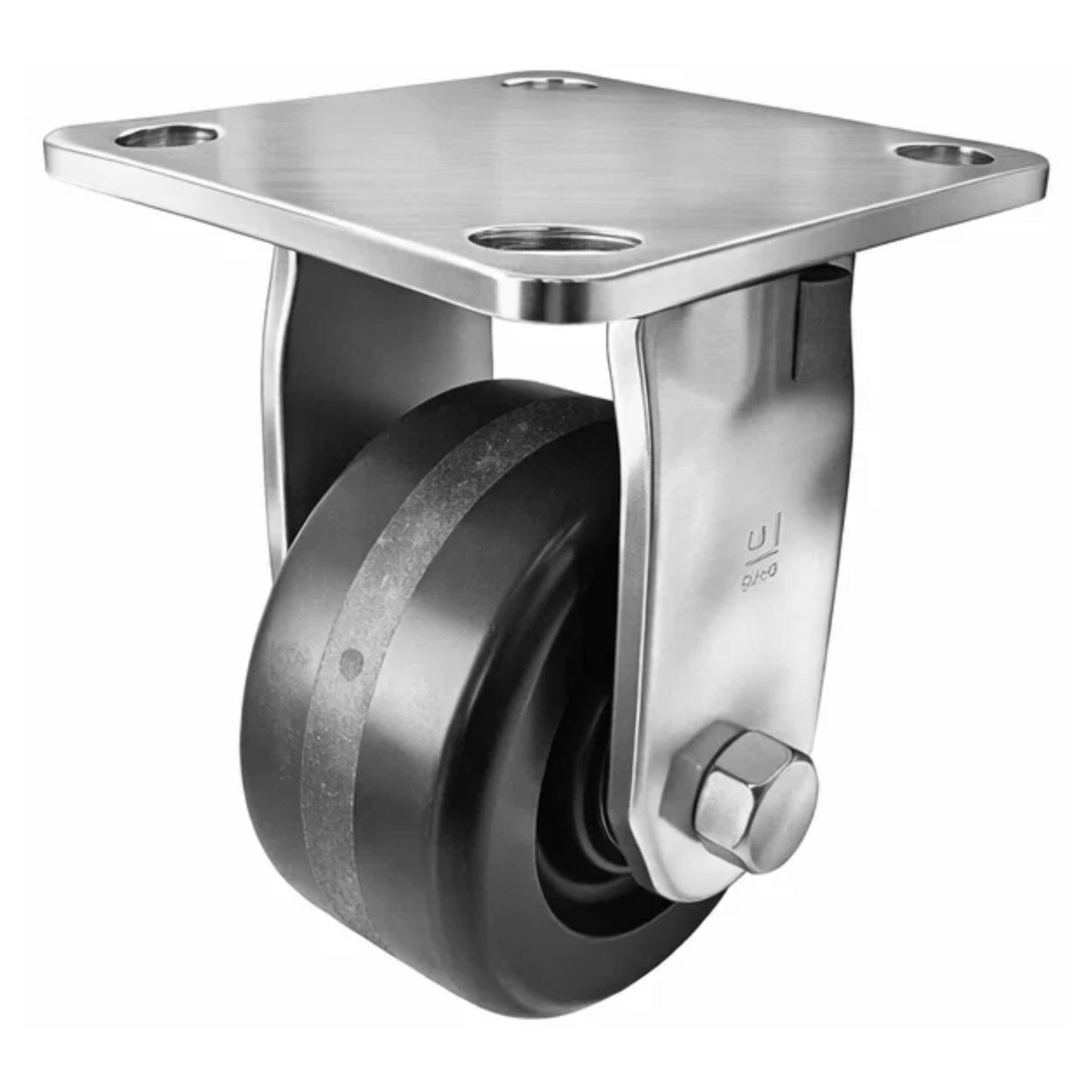

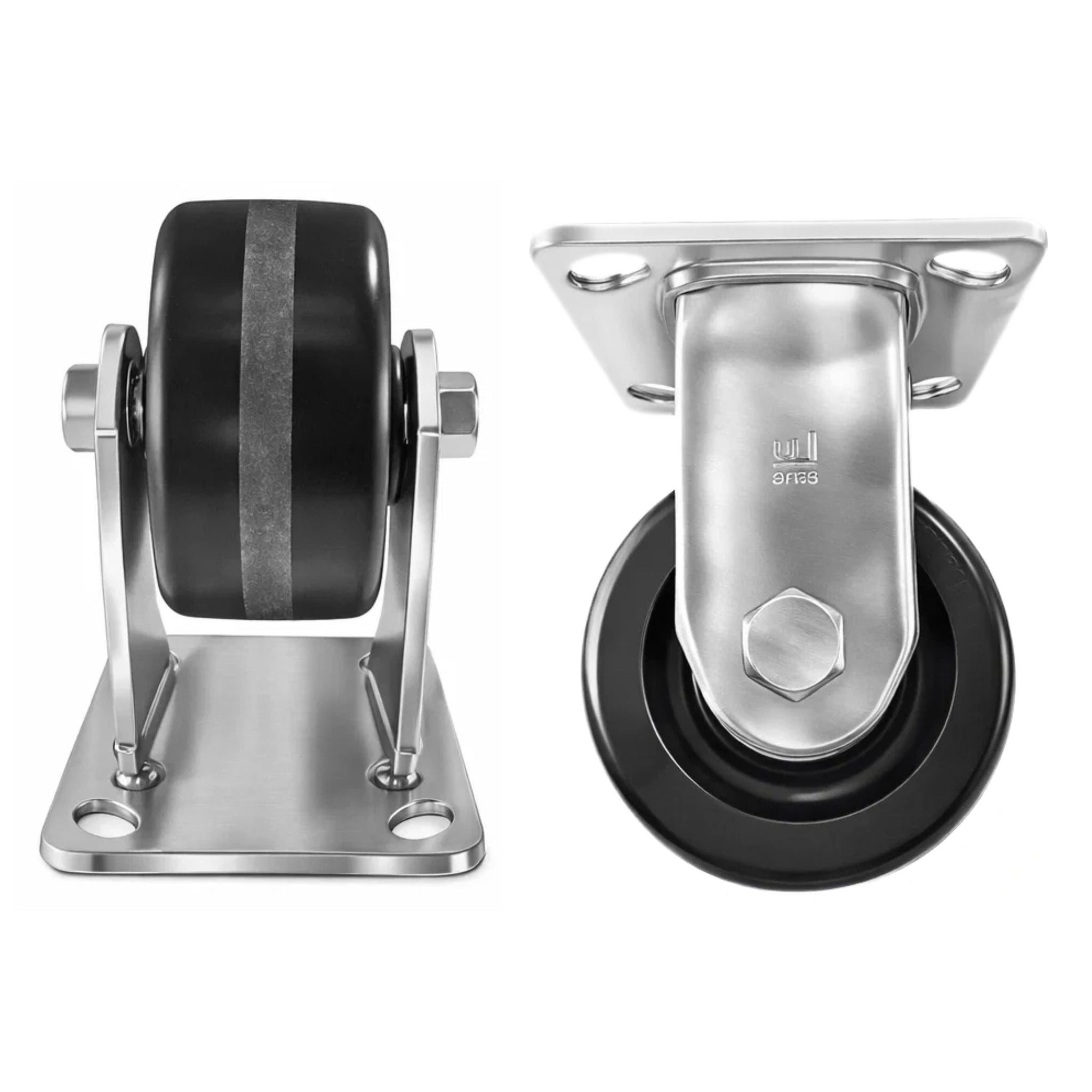

Heavy Duty Caster 4" x 2" Phenolic Wheel Stainless Steel - Rigid

Product Description

This Series 40 medium heavy-duty rigid caster is designed for applications requiring stable, straight-line movement and reliable load support up to 900 lbs. It features a 4-inch phenolic wheel with a 2-inch tread width, offering strong resistance to impact, chemicals, and moisture, making it suitable for demanding environments.

The stainless steel construction includes a cold-forged top plate and yoke, providing added durability and corrosion resistance. Built with hardened raceways and a double-row ball bearing swivel raceway, this caster is designed for consistent performance, while the integrated zerk fitting allows for routine lubrication and maintenance.

With an overall height of 5-5/8", a 1/2" axle, and a 5/8" kingpin, this unit delivers solid structural support. The rigid design ensures controlled, straight tracking, making it ideal for medium heavy platform trucks, food service equipment, and stock carts.

The top plate measures 3-15/16" x 4-1/2" with bolt hole spacing of 2-5/8" x 3-5/8" to 3" x 3", and supports 3/8" mounting hardware.

Part Number: 40-40R-A1-PH-STS

Bullet Points

• Supports loads up to 900 lbs for medium heavy-duty applications
• 4" phenolic wheel with 2" tread width resists moisture, chemicals, and wear
• Rigid design provides straight-line movement and stable handling
• Stainless steel construction with hardened raceways and grease fitting for maintenance
• Top plate mount (3-15/16" x 4-1/2") fits standard bolt patterns with 3/8" hardware
